Sonnax O-Ringed End Plug Kit, A750E/F, Each

Description

The primary design function of the OE end plug is to prevent critical pressure loss by capping the bore. OE end plugs rely entirely on small clearances between the end plug and bore to confine hydraulic fluid under fluctuating pressure. End plugs are often tasked with a secondary role functioning as a spring stop or valve stop. The repetitious and varying actions of fluid pressure, spring motion and valve impact cause wear at the end plug and bore mating surface, and can distort the shape of the end plug. High pressure fluid that leaks through the clearance gap can, with time, erode the surface material of both end plug and bore. Eventually, the cumulative loss of hydraulic integrity leads to low pressure in critical circuits. Complaints vary depending on the location of the worn end plug, but are always related to pressure losses. Sonnax O-ringed end plug kit 147741-31K replaces worn, distorted or eroded end plugs in Toyota A750E and A750F transmissions. The Sonnax end plugs have small clearances to mechanically block the bore and add additional effectiveness. The O-ring seals reduce leakage further by blocking off worn areas of the bore which the new end plug alone could not seal.

No special tools required
Minimal end plug-to-bore clearance with added O-ring for positive seal
Drop-in Zip Valve parts install quickly and easily

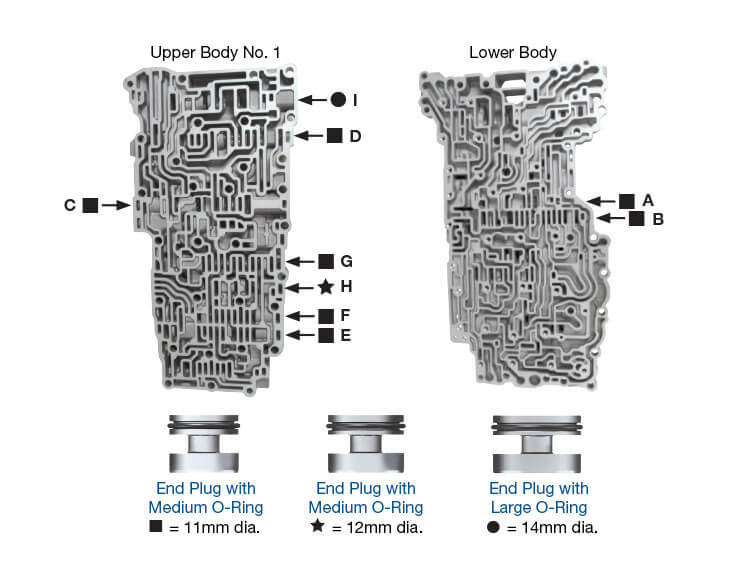

I.D.
Valve Name
End Plug Dia.
Installed Seal Position
O-Ring Size

Lower Valve Body

A
Clutch Control
11mm
Outboard
Medium

B
Clutch Apply Control
11mm
Outboard
Medium

Upper Valve Body No. 1

C
Clutch Lock
11mm
Outboard
Medium

D
Lockup Relay
11mm
Outboard
Medium

E
1-2 Shift
11mm
Outboard
Medium

F
2-3 Shift
11mm
Outboard
Medium

G
3-4 Shift
11mm
Inboard
Medium

H
Brake Control
12mm
Outboard
Medium

I
Secondary Regulator
14mm
Outboard
Large
