OE end plugs are designed to prevent critical pressure loss by capping the bore, while also functioning as a spring or valve stop. Repetitive spring motion, valve impact and fluid pressure variations cause wear between the end plug and bore mating surface, allowing vital pressure to escape the circuit.
Valve bodies in Ford and GM listed transmissions have end plugs at the various clutch regulator valve bores which are susceptible to this wear. When actuator/solenoid feed pressure is allowed to leak due to plug deterioration, various shift concerns and burnt clutches will result in the affected circuit. Wear at the TCC regulator and clutch bypass valve end plugs allows valuable oil loss that leads to drivability concerns. Eliminate leaks and restore hydraulic integrity by installing Sonnax O-ringed end plug kit 124740-02K.

Minimal end plug-to-bore clearance with added O-ring for positive seal
Drop-in Zip Valve™ parts install quickly and easily


ID

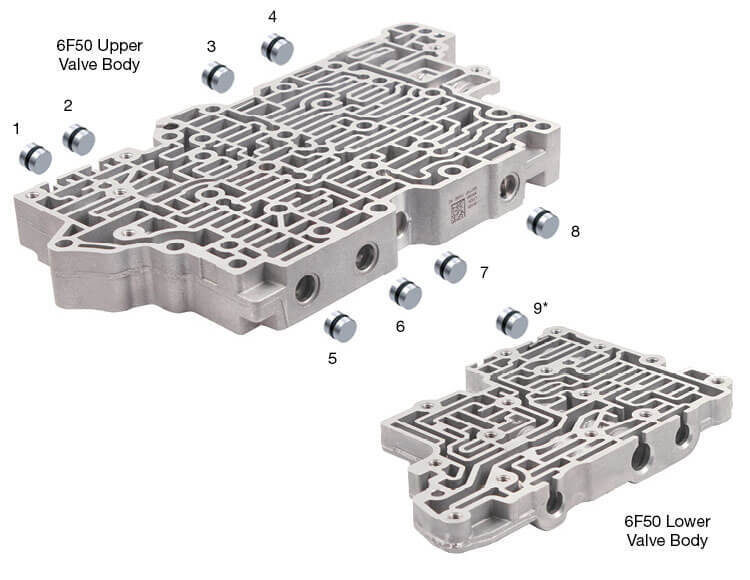

Ford 6F50, 6F55 Locations
GM 6T70 (Gen. 1) 6T70 (Gen. 2), 6T75 (Gen. 1), 6T75 (Gen. 2), 6T80 (Gen. 2) Locations

1
Pressure Regulator Valve
Pressure Regulator Valve

2
Isolator Valve
Isolator Valve

3
Multiplex Manual Valve
Clutch Select Solenoid Valve #3

4
Multiplex Shift Valve
Clutch Select Solenoid Valve #2

5
Direct Clutch Regulator Valve
3-5 Reverse Clutch Regulator Valve

6
Intermediate Clutch Regulator & Gain Valve
2-6 Clutch Regulator & Gain Valve

7
TCC Regulator Apply Valve
TCC Regulator Apply Valve

8
L/R Overdrive Clutch Regulator Valve
L/R 4-5-6 Clutch Regulator Valve

9*
Forward Clutch Regulator Valve
1-2-3-4 Clutch Regulator Valve


* O-Ringed end plug should not be used on later 6F50/6F55 applications without short shuttle valve, and that has long (approximately .940") end plug.
Learn More About Zip Valve™ Drop-In Repairs
