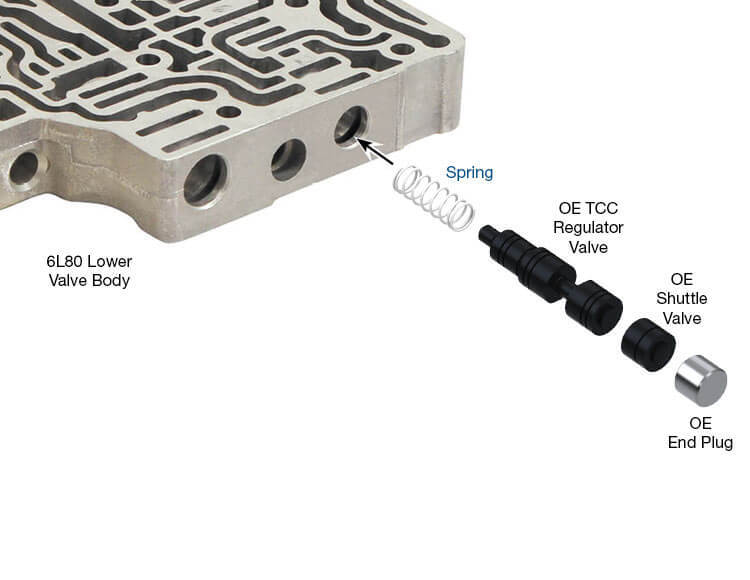

Vehicles with GM 6L45, 6L50, 6L80 and 6L90 transmissions may have complaints of vibration, shudder or roughness, particularly while driving at low speeds with a steady throttle on a level road. This complaint may be more noticeable when driving up an incline. These symptoms can be caused by a broken TCC regulator valve spring in the lower valve body, which causes the TCC slip speed to drop to zero.
With a capable scan tool, monitor the TCC slip during steady throttle input. If the TCC slip remains a constant zero RPM during the shudder or vibration, check the lower valve body for a broken TCC regulator valve spring and replace as needed with Sonnax TCC regulator valve spring 104740-45K.

More From This Category

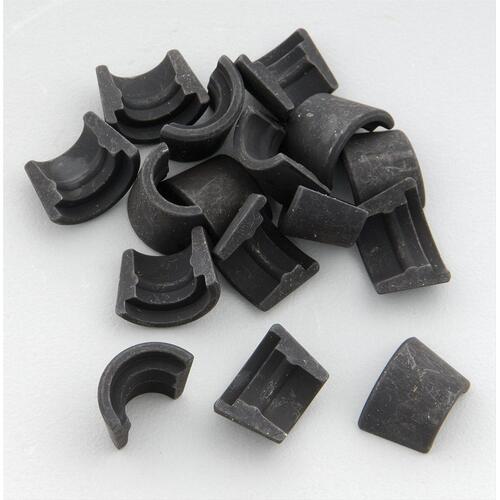

MANLEY Valve Lock, 10 Degree Machined, Conventional, Titanium, +.050 .3110 in. Stem, Set of 16

MANLEY Valve Lock, 10 Degree Machined, Conventional, Titanium, +.050 .3110 in. Stem, Set of 16

$413.60

COMP Cams Conical Valve Spring Kit GM LS w/ Tool Steel Retainers

COMP Cams Conical Valve Spring Kit GM LS w/ Tool Steel Retainers

$1,321.85

COMP Cams Valve Seal, Metal Viton, .530 in. Guide Size, 5/16 Valve Stem, Set of 16

COMP Cams Valve Seal, Metal Viton, .530 in. Guide Size, 5/16 Valve Stem, Set of 16

$41.88

Trick Flow Valve Springs, PAC Racing, Triple, 1.645 in. Outside Diameter, 688 lbs./in. Rate, 1.130 in. Coil Bind, Set 16

Trick Flow Valve Springs, PAC Racing, Triple, 1.645 in. Outside Diameter, 688 lbs./in. Rate, 1.130 in. Coil Bind, Set 16

$948.30

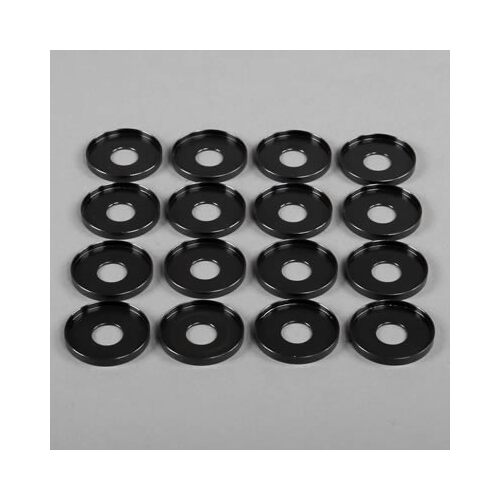

MANLEY Valve Spring Locator, Inside, Heat-Treated, Fits 1.58 in. OD. Spring, .567 in. ID, 1.57 in. OD, .045 in. Thick, Black, Each
