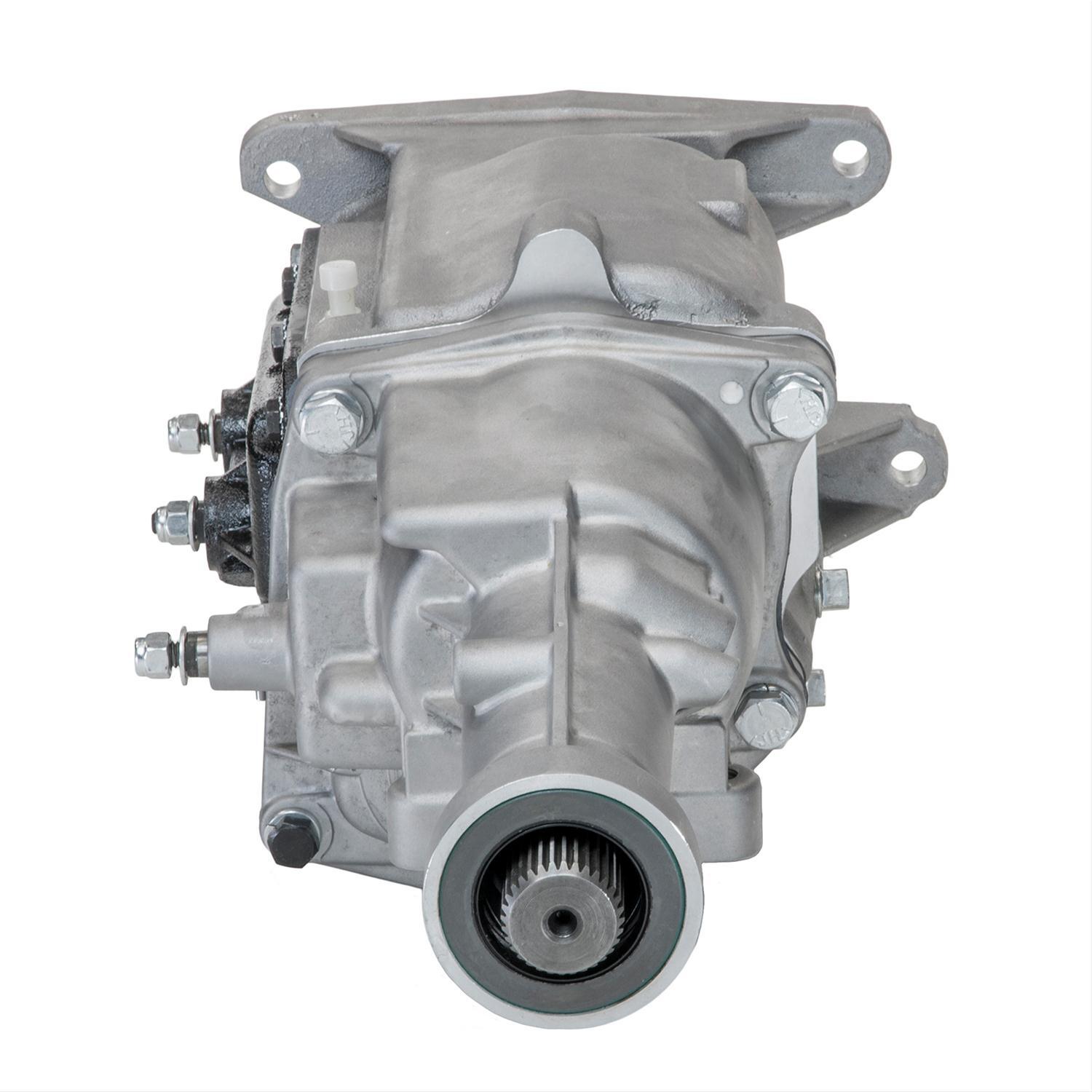

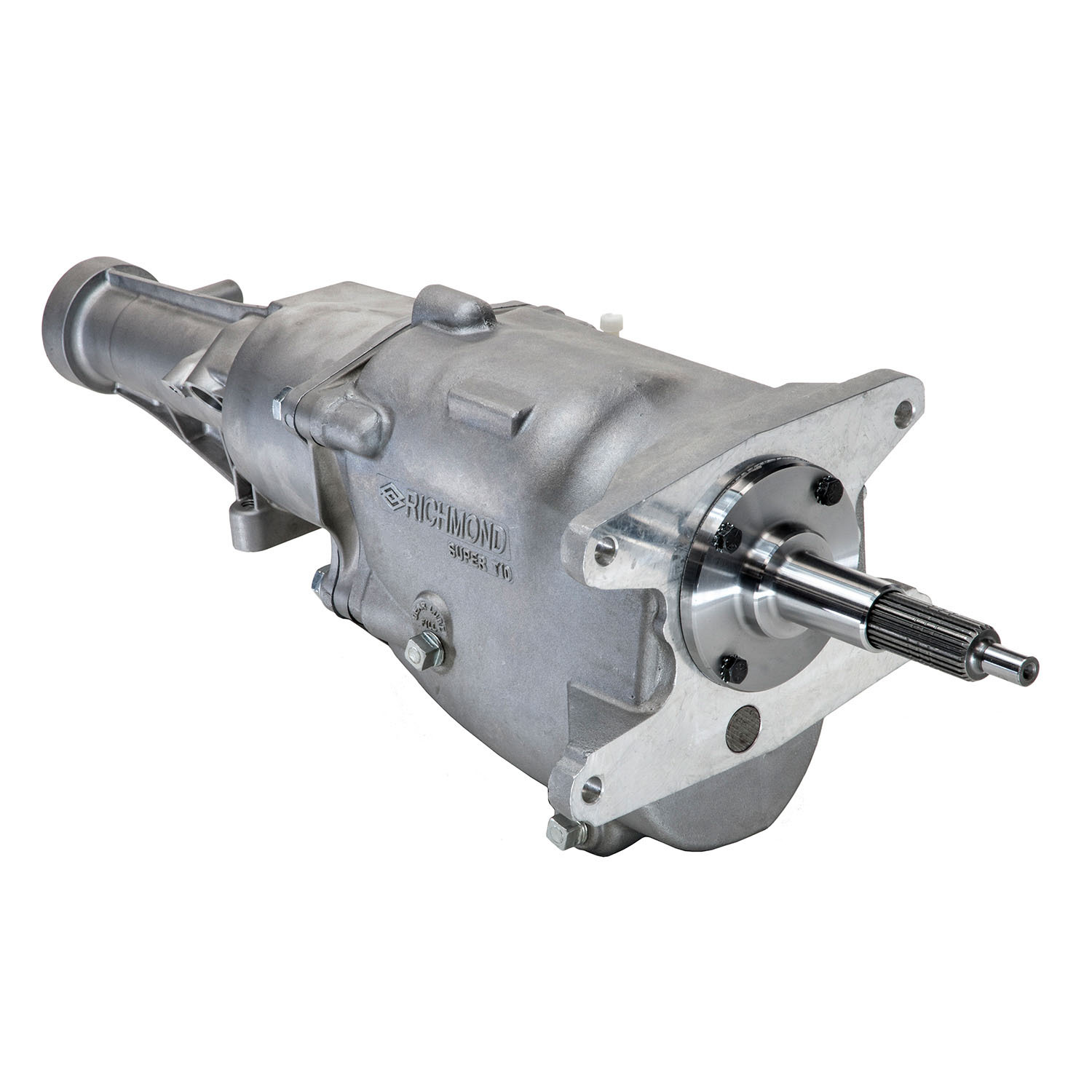

Designed for the rigors of a road course, Richmond Gear T-10 Plus 4-speed transmissions are built by American craftsmen. Using the latest CNC machining and in-house treatment, these T-10s are available in a multiple range of ratios. They combine race-proven synchro assemblies and NASCAR-proven technology to deliver the smoothness and strength needed for the demands of a road course. Engineered with a pro-quality approach, the Richmond Gear T-10 Plus transmissions deliver the quality and performance you expect!

Specifications:

  • First Gear Ratio: 2.64
  • Fourth Gear Ratio: 1.00
  • Input Shaft Diameter: 1.125 (Inch)
  • Input Shaft Spline Quantity: 26
  • Maximum Torque: 325 (Foot Pounds)
  • Oil Capacity: 2.4 (Pint)
  • Oil Type: 80w90 GL-4
  • Output Shaft Diameter: 1.375 (Inch)
  • Output Shaft Spline Quantity: 32
  • Reverse First Gear Ratio: 2.55
  • Second Gear Ratio: 1.75
  • Taxonomy A: Manual Transmission LD
  • Taxonomy B: Complete Transmissions
  • Taxonomy C: Richmond Super T10 Plus
  • Third Gear Ratio: 1.34
  • Transmission Model: Richmond Super T-10 Plus 4-Speed

Fitment:
