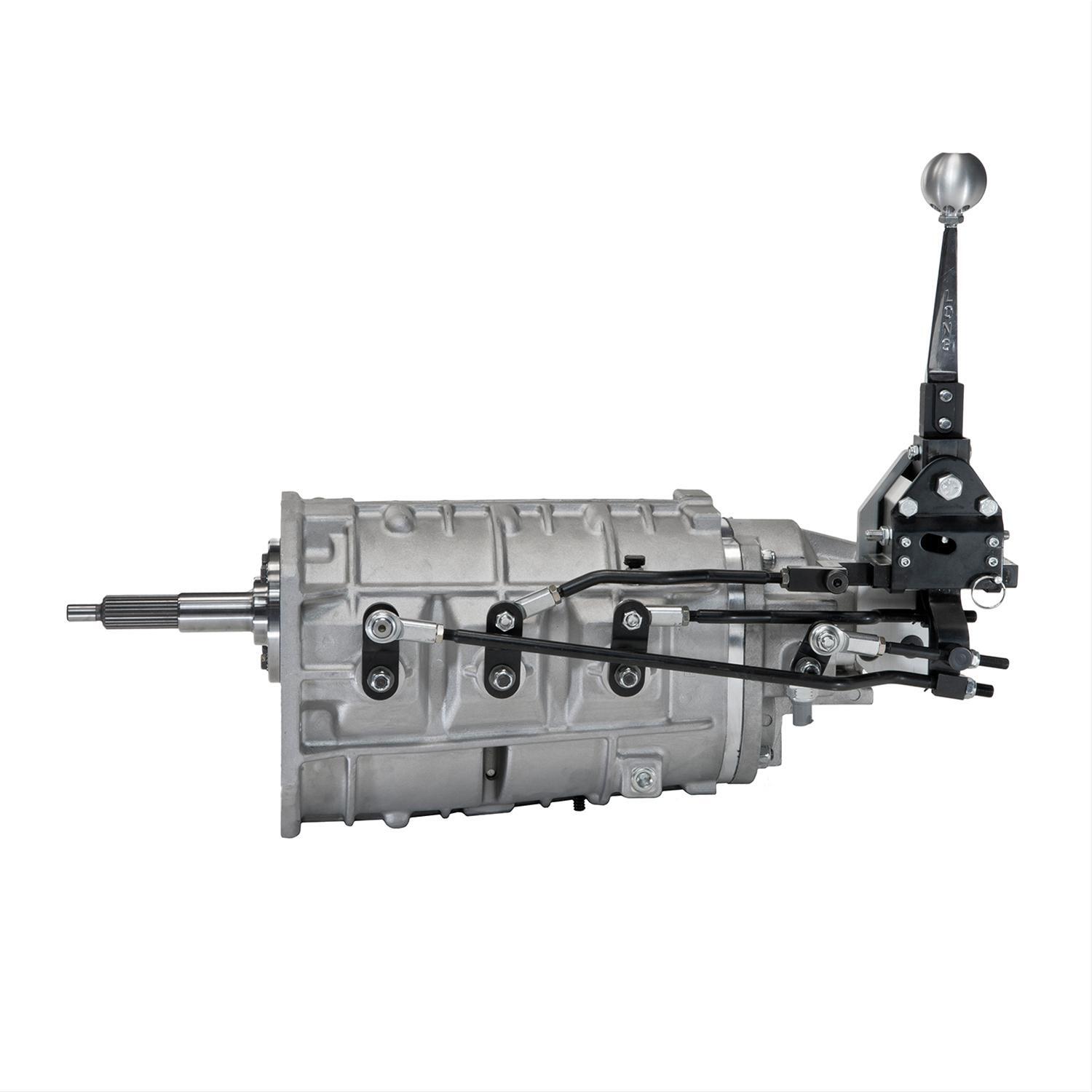

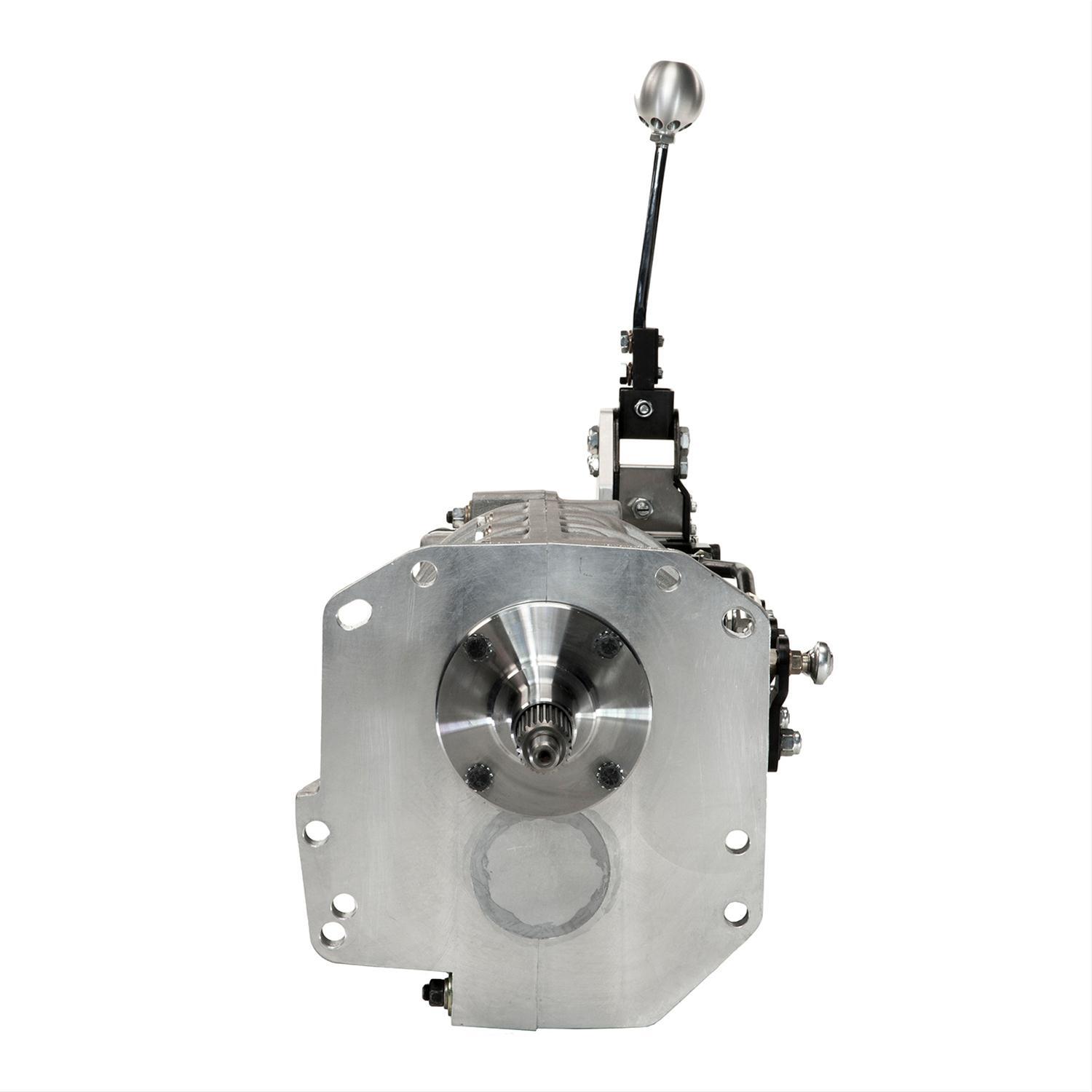

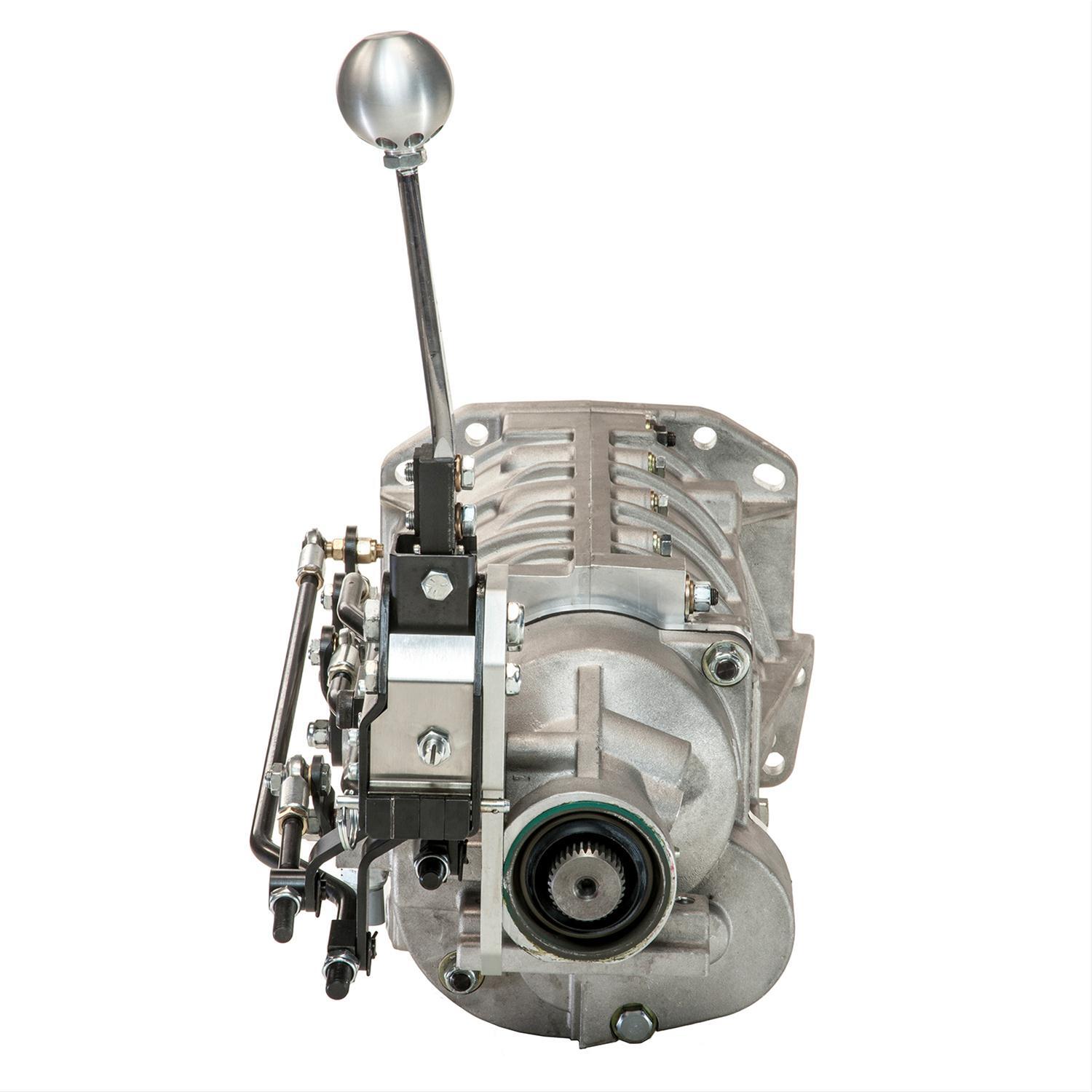

Richmond Gear Super Street 5-Speed Transmissions with Overdrive
Richmond Gear Super Street 5-speed transmissions feature a 5-speed design with overdrive that can handle up to 600 ft.-lbs. of torque. Based on the successful Richmond NASCAR-type design and technology, they are manufactured using the best in CNC machining, gear-cutting technology, and race-proven in-house treating. These transmissions include a long shifter for the ultimate in shift performance and durability. Available for Ford or GM applications, Richmond Gear Super Street 5-speed transmissions will make an excellent addition to your vehicle.
Specifications:
- Fifth Gear Ratio: .77
- First Gear Ratio: 2.89
- Fourth Gear Ratio: 1.00
- Input Shaft Diameter: 1.125 (Inch)
- Input Shaft Spline Quantity: 26
- Maximum Torque: 600 (Foot Pounds)
- Oil Capacity: 2 (Quart)
- Oil Type: 80w90 GL-4
- Output Shaft Diameter: 1.375 (Inch)
- Output Shaft Spline Quantity: 32
- Second Gear Ratio: 1.85
- Taxonomy A: Manual Transmission LD
- Taxonomy B: Complete Transmissions
- Taxonomy C: Richmond Super Street 5-Speed OD
- Third Gear Ratio: 1.31
- Transmission Model: Richmond Super Street 5-Speed
Fitment:
