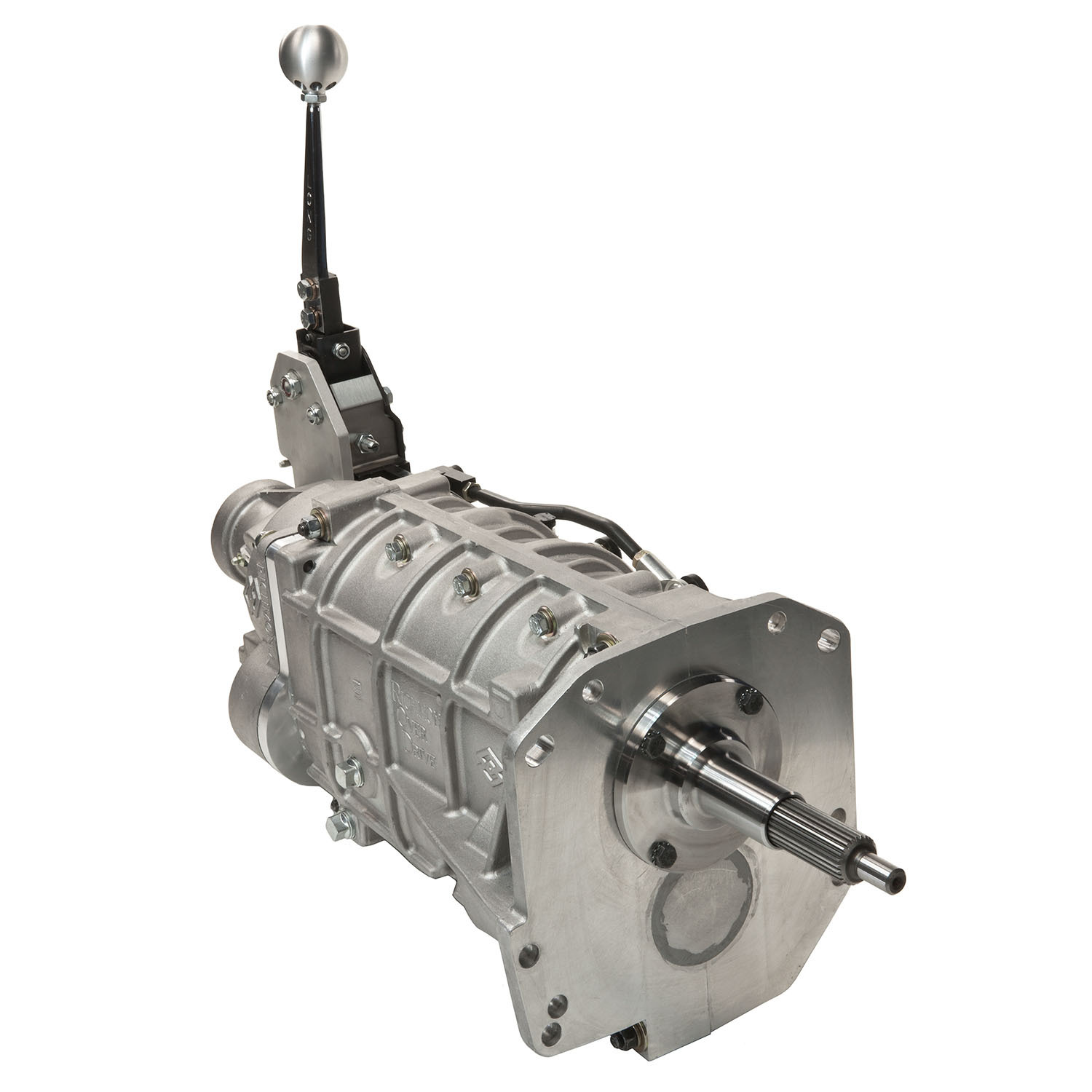

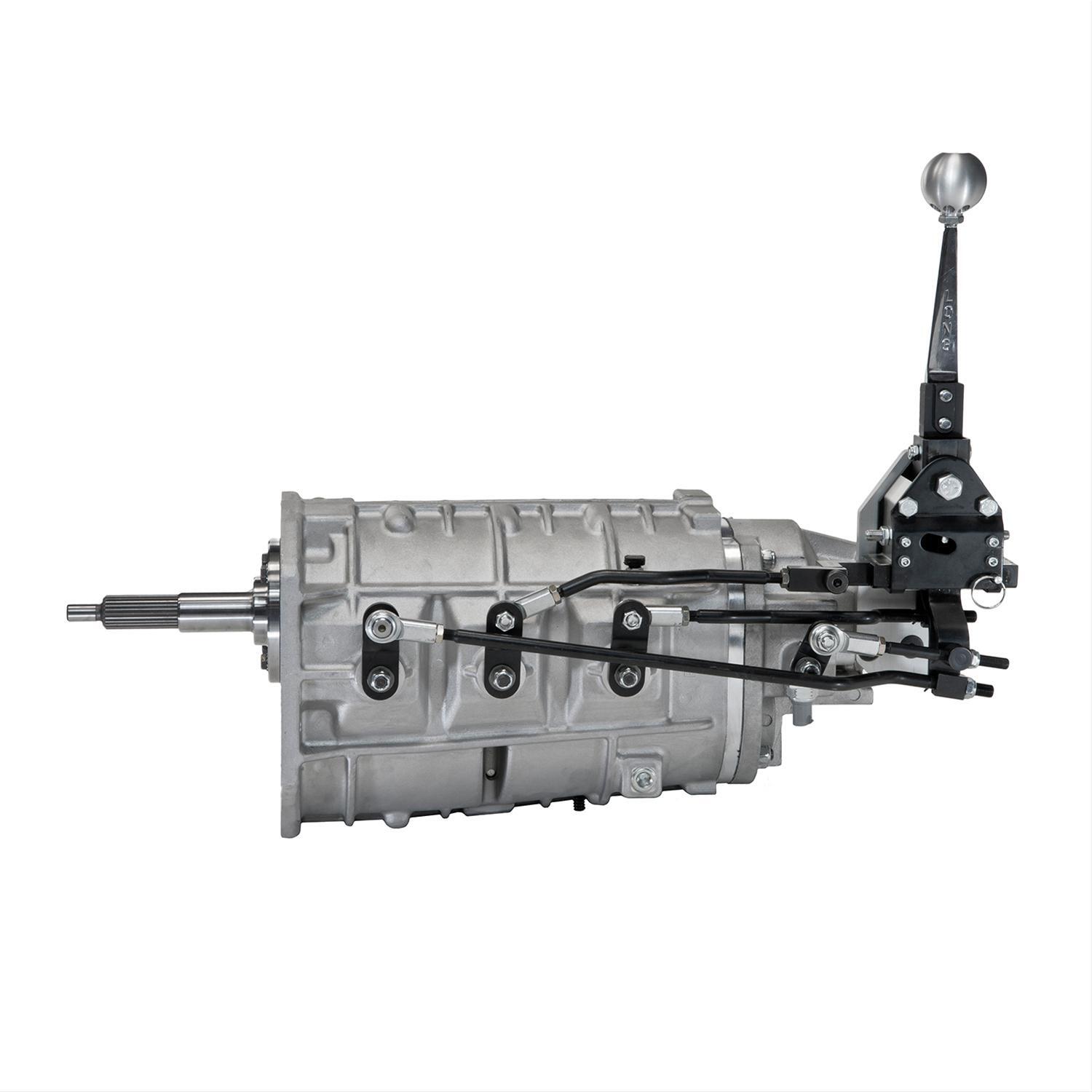

Richmond Gear Super Street 5-Speed Transmissions with Overdrive

Richmond Gear Super Street 5-speed transmissions feature a 5-speed design with overdrive that can handle up to 600 ft.-lbs. of torque. Based on the successful Richmond NASCAR-type design and technology, they are manufactured using the best in CNC machining, gear-cutting technology, and race-proven in-house treating. These transmissions include a long shifter for the ultimate in shift performance and durability. Available for Ford or GM applications, Richmond Gear Super Street 5-speed transmissions will make an excellent addition to your vehicle.

Specifications:

  • Fifth Gear Ratio: .77
  • First Gear Ratio: 3.33
  • Fourth Gear Ratio: 1.00
  • Input Shaft Diameter: 1.125 (Inch)
  • Input Shaft Spline Quantity: 26
  • Maximum Torque: 600 (Foot Pounds)
  • Oil Capacity: 2 (Quart)
  • Oil Type: 80w90 GL-4
  • Output Shaft Diameter: 1.375 (Inch)
  • Output Shaft Spline Quantity: 32
  • Second Gear Ratio: 1.85
  • Taxonomy A: Manual Transmission LD
  • Taxonomy B: Complete Transmissions
  • Taxonomy C: Richmond Super Street 5-Speed OD
  • Third Gear Ratio: 1.31
  • Transmission Model: Richmond Super Street 5-Speed

Fitment:
