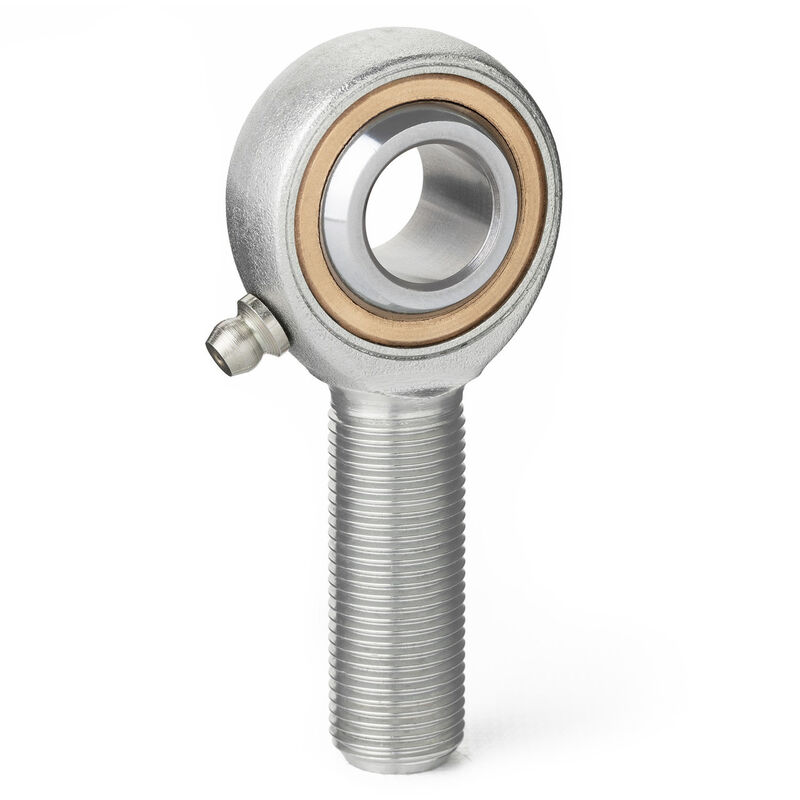

V Series 3 Piece Bronze Race Rod End, 3/16in. Bore, 10-32 RH Male Thread (PART #QA1-VMR3Z)

QA1's

VM Series

carbon steel male rod ends with a bronze race are generally appropriate for low-load, high-oscillation commercial applications. These rod ends are protective-coated for corrosion resistance and are available with right- or left-hand threads. Includes a grease fitting which, when lubricated regularly, can extend the life of the rod end, reduce wear, and enhance performance. Stud configurations are also available.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

RACE:

Sintered Bronze, Self-Lubricating Oil impregnated

BODY:

Carbon Steel, Protective Coating for Corrosion Resistance

SPECIFICATIONS

Rod End Series V Series
Style/Construction 3 Piece Bronze Race
Bore 0.1875in. or 3/16in.
Thread Direction RH
Thread Size and Pitch 10-32
Male or Female Thread Male
PTFE Lined? No
Configuration Greaseable
