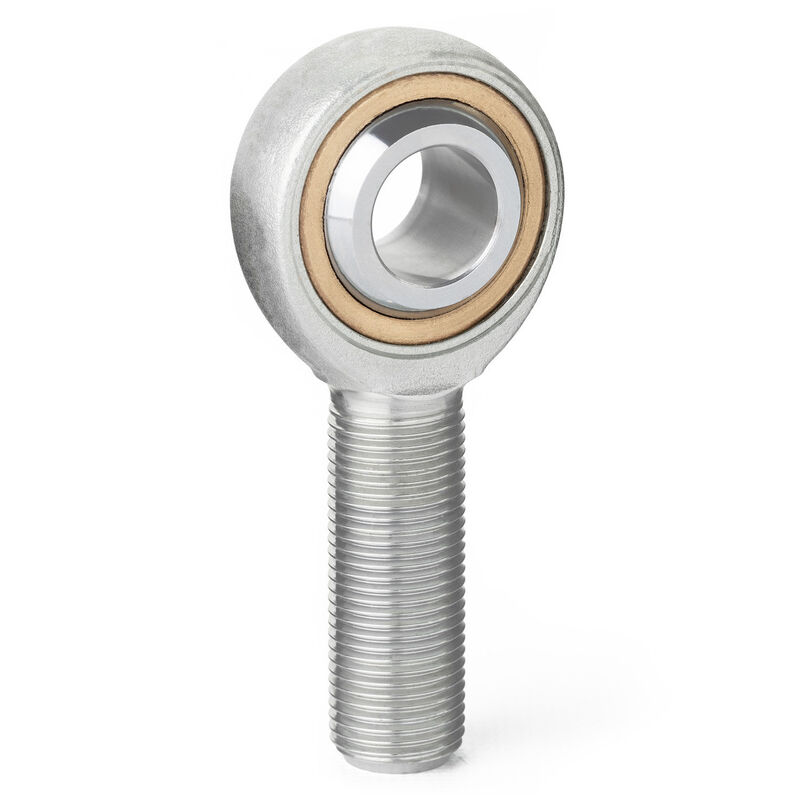

V Series 3 Piece Bronze Race Rod End, 5/8in. Bore, 5/8in.-18 RH Male Thread (PART #QA1-VMR10)

QA1's

VM Series

carbon steel male rod ends with a bronze race are generally appropriate for low-load, high-oscillation commercial applications. These rod ends are protective-coated for corrosion resistance and are available with right- or left-hand threads. Grease fittings and stud configurations are available.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

RACE:

Sintered Bronze, Self-Lubricating Oil impregnated

BODY:

Carbon Steel, Protective Coating for Corrosion Resistance

SPECIFICATIONS

Rod End Series V Series
Style/Construction 3 Piece Bronze Race
Bore 0.6250in. or 5/8in.
Thread Direction RH
Thread Size and Pitch 5/8in.-18
Male or Female Thread Male
PTFE Lined? No
Configuration Standard
