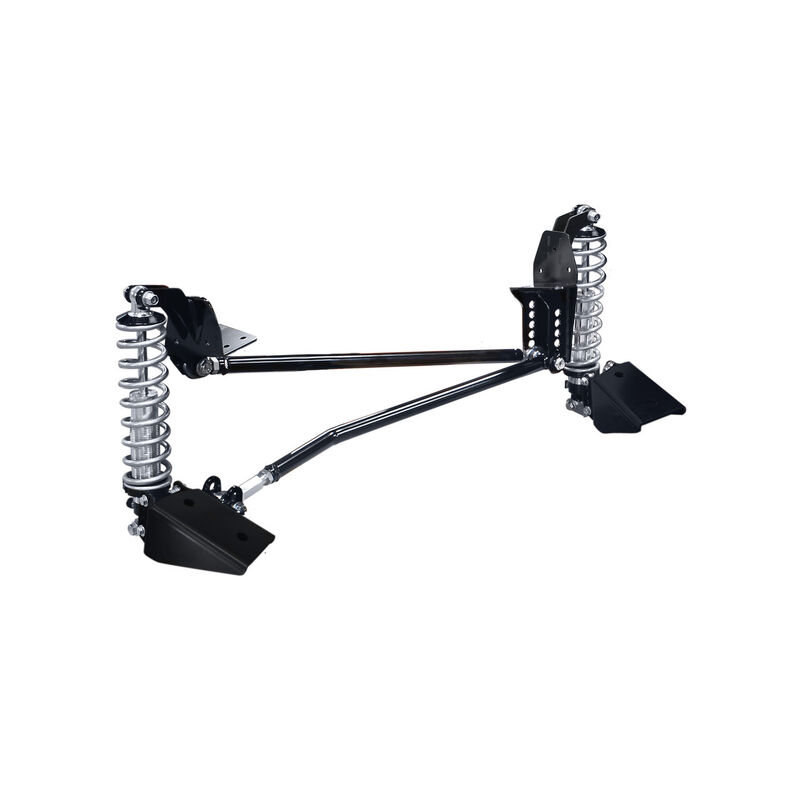

Rear Coilover System,1963-1972 GM C10, Double Adjustable, 12in. 250lb. Springs (PART #QA1-RCK52617)

Looking to keep your factory truck arms, but still want coil-overs for adjustable ride height? QA1's C10 bolt-on rear suspension system is designed to convert trucks originally equipped with a coil-spring rear suspension to coil-overs. This system integrates adjustability into multiple areas so you can truly fine-tune the geometry to create the perfect performance after lowering. , , By converting the coil-spring rear suspension to adjustable coil-overs, the ride height for each corner can be altered for that perfect stance. The adjustable panhard bar keeps the rear centered for more predictable cornering, and the multiple mounting locations correct roll center geometry based on the amount of drop. The coil-overs are also relocated to the outside of the frame rail, closer to the wheel, for better cornering stability and allowing room for popular aftermarket rear-mounted fuel tanks. In addition to being easily bolted on, the entire rear system can be installed without needing to remove the bed of the truck.

SPECIFICATIONS

Spring Rate 250lb/in.
Springs Included Yes
Shock Valving Double Adjustable
Vehicle Position Rear
