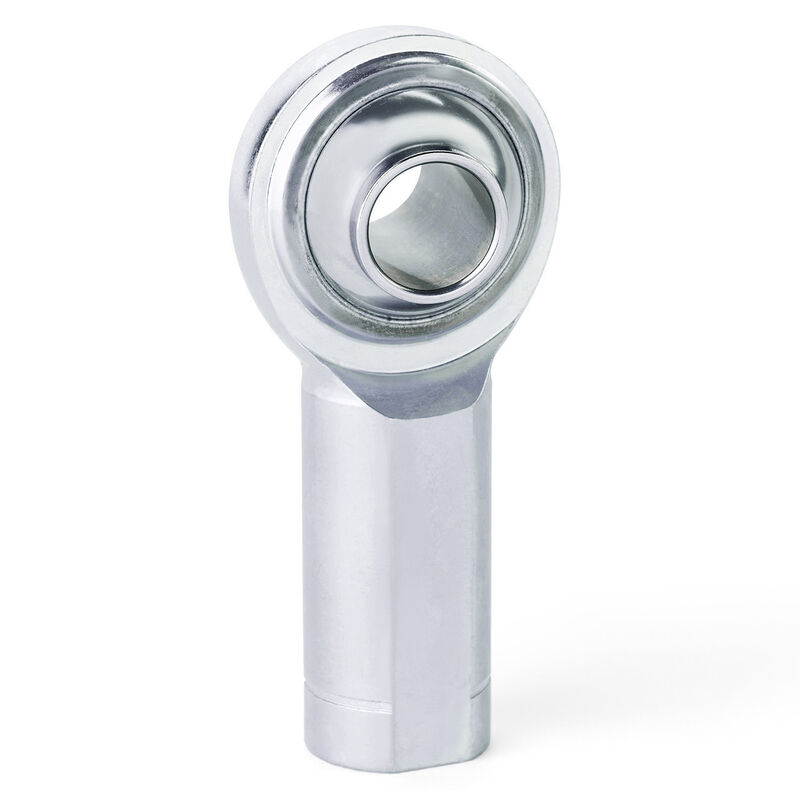

PCY Series 2 Piece Alloy High-Misalignment Rod End, 5/8in. Bore, 5/8in.-18 LH Female Thread, PTFE Lined (PART #QA1-PCYFL10T)

QA1's

PCYF-T Series

alloy/chromoly steel two-piece male rod ends are available for applications requiring high misalignment. These zinc coated rod ends offer superior load ratings over carbon steel two-piece rod ends and include a self-lubricating PTFE liner. The PCYF-T offers the highest misalignment available in the industry. Available in multiple sizes with right- or left-hand threads.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

LINER

: Self-Lubricating PTFE

BODY:

Zinc Coated, Alloy/Chromoly Steel, Heat Treated

SPECIFICATIONS

Rod End Series PCY Series
Style/Construction 2 Piece Alloy High-Misalignment
Bore 0.6250in. or 5/8in.
Thread Direction LH
Thread Size and Pitch 5/8in.-18
Male or Female Thread Female
PTFE Lined? Yes
Configuration Standard
