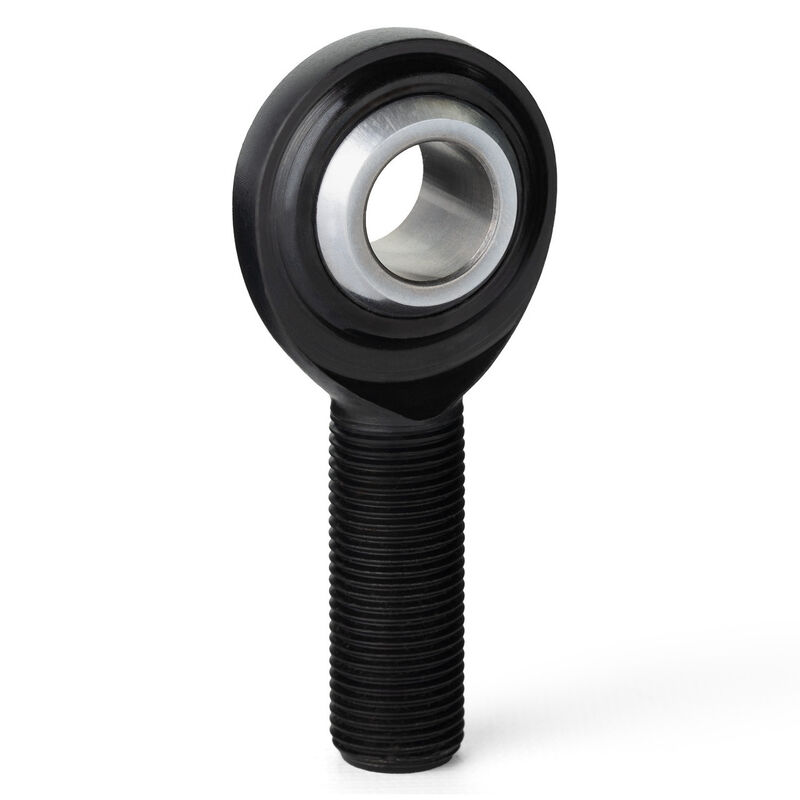

PC Series 2 Piece Alloy Rod End, 1/2in. Bore, 1/2in.-20 RH Male Thread, PTFE Lined (PART #QA1-PCMR8T)

QA1's

PCM-T Series

alloy/chromoly steel male rod ends are designed as an economical, high load two-piece solution "“ their metal-to-metal contact delivers superior load ratings over carbon steel rod ends. PCM-T Series rod ends include a self-lubricating PTFE liner, are black oxide coated for durability and are available with right- or left-hand threads. Stud configurations are also available.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

LINER

: Self-Lubricating PTFE

BODY:

Alloy/Chromoly Steel, Heat Treated, Metal-to-Metal Black Oxide Coated

SPECIFICATIONS

Rod End Series PC Series
Style/Construction 2 Piece Alloy
Bore 0.5000in. or 1/2in.
Thread Direction RH
Thread Size and Pitch 1/2in.-20
Male or Female Thread Male
PTFE Lined? Yes
Configuration Standard
