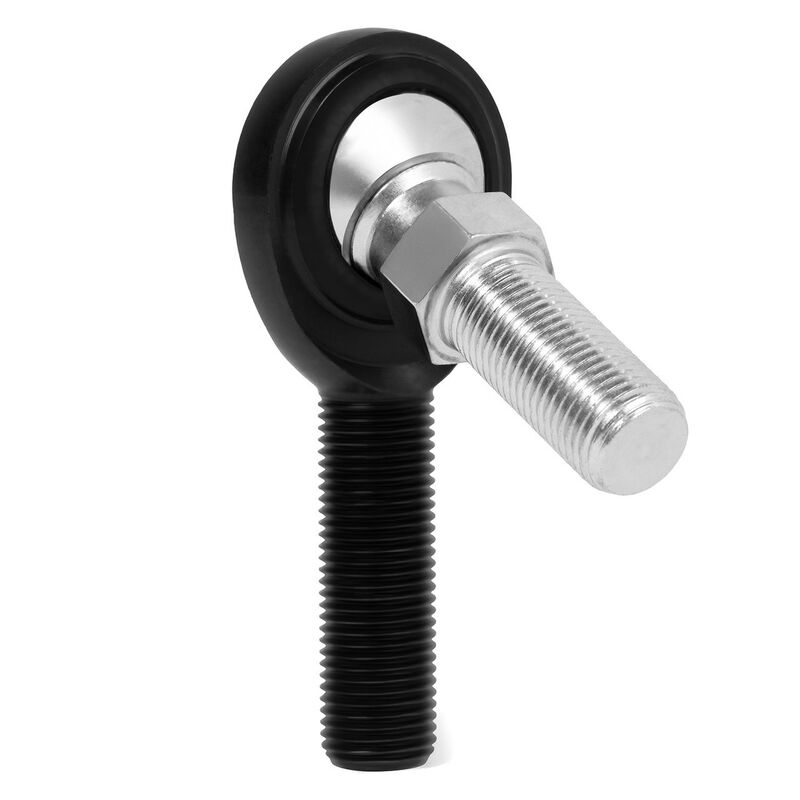

PC Series 2 Piece Alloy Rod End, 3/4in. Bore, 3/4in.-16 RH Male Thread (PART #QA1-PCMR12S)

QA1's

PCM Series

alloy/chromoly steel male rod ends are designed as an economical, high load two-piece solution "“ their metal-to-metal contact delivers superior load ratings over carbon steel rod ends. PCM Series rod ends are black oxide coated for durability and available with right- or left-hand threads. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications. Grease fittings are also available.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

BODY:

Alloy/Chromoly Steel, Heat Treated, Metal-to-Metal

STUD:

Carbon Steel

SPECIFICATIONS

Rod End Series PC Series
Style/Construction 2 Piece Alloy
Bore 0.7500in. or 3/4in.
Thread Direction RH
Thread Size and Pitch 3/4in.-16
Male or Female Thread Male
PTFE Lined? No
Configuration Studded
