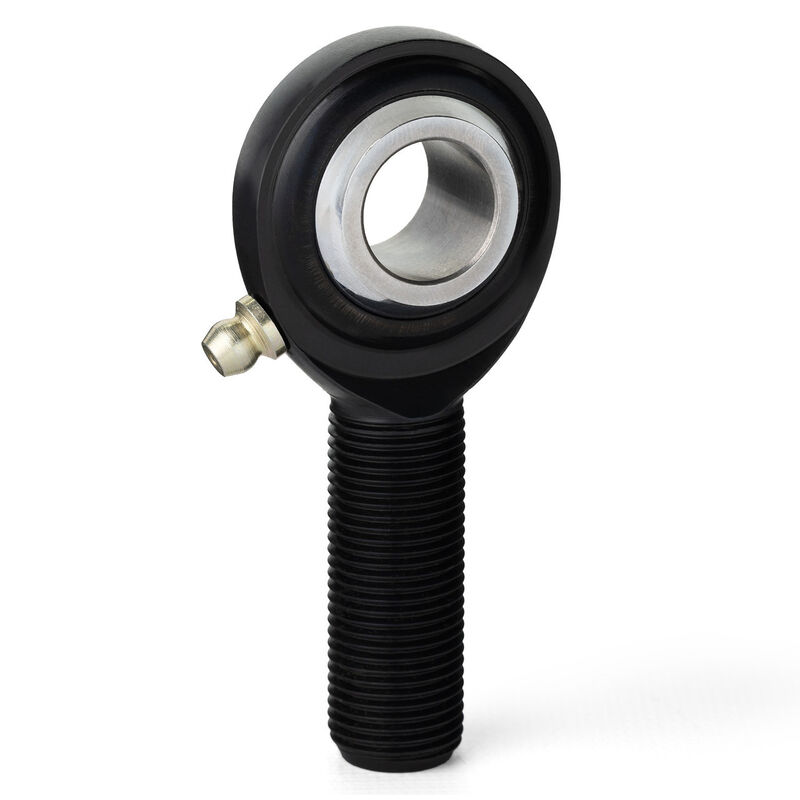

PC Series 2 Piece Alloy Rod End, 1/2in. Bore, 5/8in.-18 LH Male Thread (PART #QA1-PCML8-10Z)

QA1's

PCM Series

alloy/chromoly steel male rod ends are designed as an economical, high load two-piece solution "“ their metal-to-metal contact delivers superior load ratings over carbon steel rod ends. PCM Series rod ends are black oxide coated for durability and available with right- or left-hand threads. Includes a grease fitting which, when lubricated regularly, can extend the life of the rod end, reduce wear, and enhance performance. Stud configurations are also available.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

BODY:

Alloy/Chromoly Steel, Heat Treated, Metal-to-Metal

SPECIFICATIONS

Rod End Series PC Series
Style/Construction 2 Piece Alloy
Bore 0.5000in. or 1/2in.
Thread Direction LH
Thread Size and Pitch 5/8in.-18
Male or Female Thread Male
PTFE Lined? No
Configuration Greaseable
