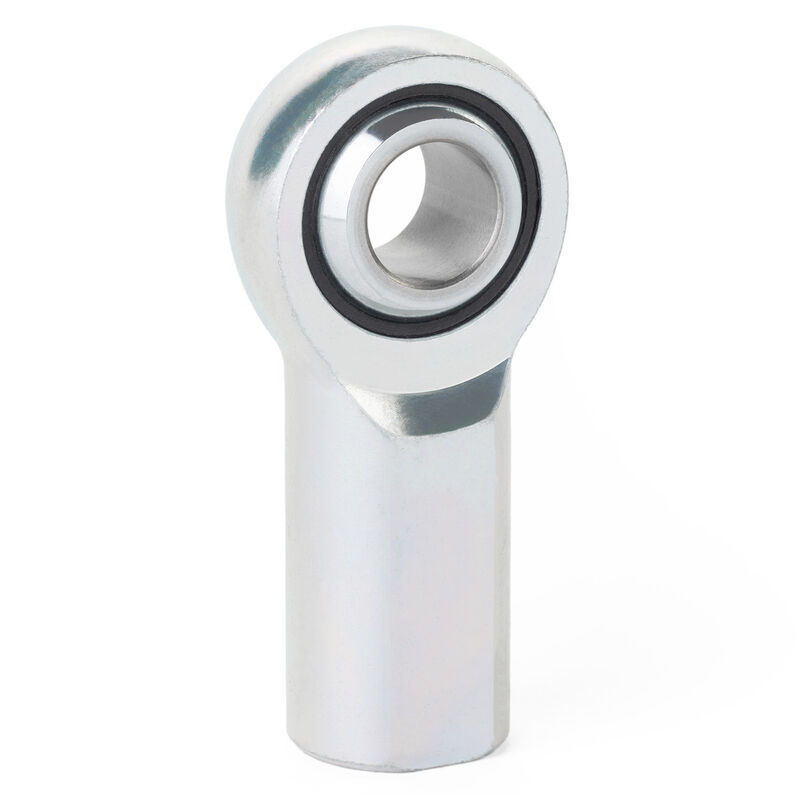

N Series Nylon Race Carbon Rod End, 3/4in. Bore, 3/4in.-16 RH Female Thread (PART #QA1-NFR12)

QA1's

NF Series

injection molded carbon steel female rod ends are built using a three-piece construction and are appropriate for a range of low load, moderate oscillation commercial applications. The NF Series features a Nylon 12 molded race with self-lubricating PTFE designed to provide low friction, low moisture absorbing properties and high wear resistance. QA1's injection molded design is unique in the industry since no holes need to be drilled in the rod end body, thereby allowing the rod end to maintain its full strength and integrity. They are also protective-coated for corrosion resistance and are available with right- or left-hand threads. Stud configurations are also available.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

RACE:

Reinforced Nylon 12 with Self-Lubricating PTFE

BODY:

Carbon Steel, Protective Coated for Corrosion Resistance

SPECIFICATIONS

Rod End Series N Series
Style/Construction Nylon Race Carbon
Bore 0.7500in. or 3/4in.
Thread Direction RH
Thread Size and Pitch 3/4in.-16
Male or Female Thread Female
PTFE Lined? No
Configuration Standard
