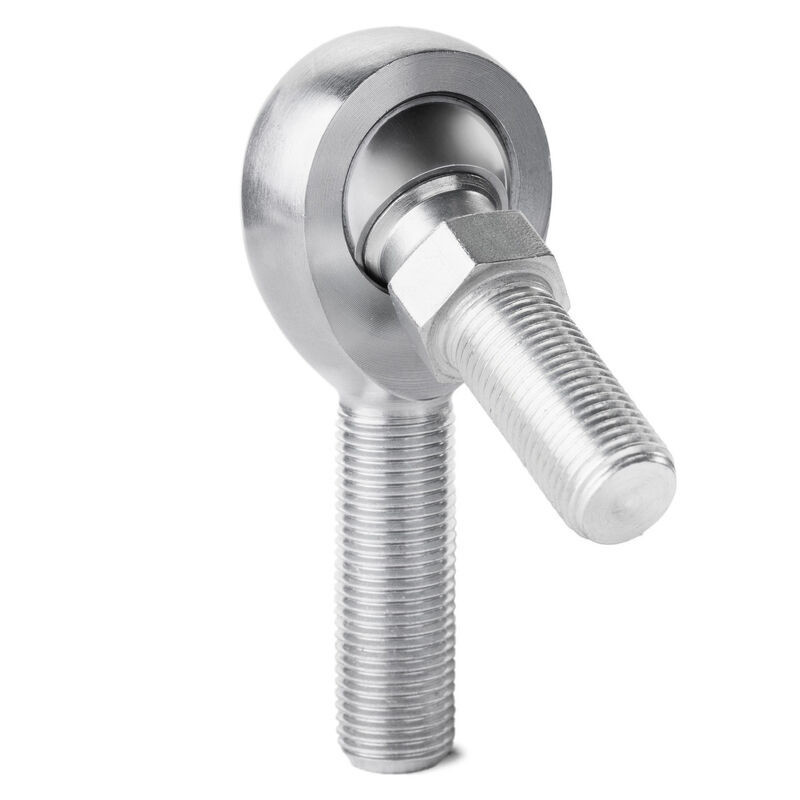

MX Series Alloy Loader Slot Rod End, 12mm Bore, M12X1.75 LH Male Thread, PTFE Lined (PART #QA1-MXML12S)

QA1's

MXM Series

alloy/chromoly steel metric male rod ends include a unique loader slot design and deliver ultra-high strength and performance. MXM Series rod ends include a reinforced Nylon 12 injection molded race with self-lubricating PTFE that helps keep out dirt and debris. This design results in metal-to-metal support for heavy shock loads and smooth operation for low loads. MXM Series rod ends offer good overall value and provide the best performance for most applications. Available with right- or left-hand threads. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

RACE:

Reinforced Nylon 12 with Self-Lubricating PTFE

BODY:

Heat Treated Alloy/Chromoly Steel, Protective Coating for Corrosion Resistance

STUD:

Carbon Steel

FEATURES:

Metal-to-Metal Support for Heavy Shock Loads, Increased Cross-Sectional Thickness for Greater Tensile Strength

SPECIFICATIONS

Rod End Series MX Series
Style/Construction Alloy Loader Slot
Bore 12mm
Thread Direction LH
Thread Size and Pitch M12X1.75
Male or Female Thread Male
PTFE Lined? Yes
Configuration Studded
