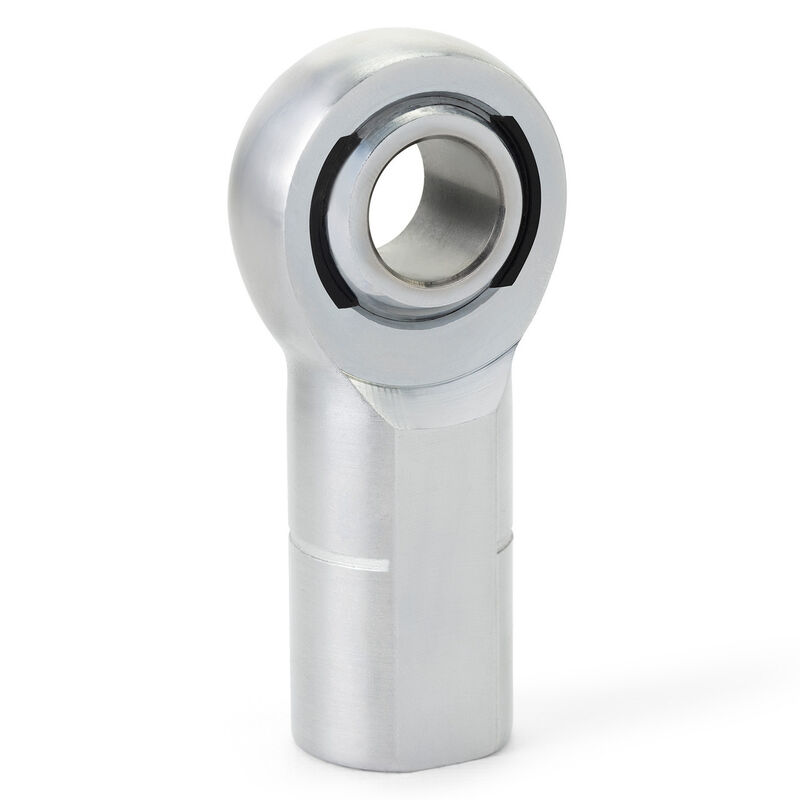

MX Series Alloy Loader Slot Rod End, 6mm Bore, M6X1.0 RH Female Thread, PTFE Lined (PART #QA1-MXFR6)

QA1's

MXF Series

alloy/chromoly steel metric female rod ends include a unique loader slot design and deliver ultra-high strength and performance. MXF Series rod ends include a reinforced Nylon 12 injection molded race with self-lubricating PTFE that helps keep out dirt and debris. This design results in metal-to-metal support for heavy shock loads and smooth operation for low loads. MXF Series rod ends offer good overall value and provide the best performance for most applications. Available with right- or left-hand threads. Stud configurations are available.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

RACE:

Reinforced Nylon 12 with Self-Lubricating PTFE

BODY:

Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance

FEATURES:

Metal-to-Metal Support for Heavy Shock Loads, Increased Cross-Sectional Thickness for Greater Tensile Strength

SPECIFICATIONS

Rod End Series MX Series
Style/Construction Alloy Loader Slot
Bore 6mm
Thread Direction RH
Thread Size and Pitch M6X1.0
Male or Female Thread Female
PTFE Lined? Yes
Configuration Standard
