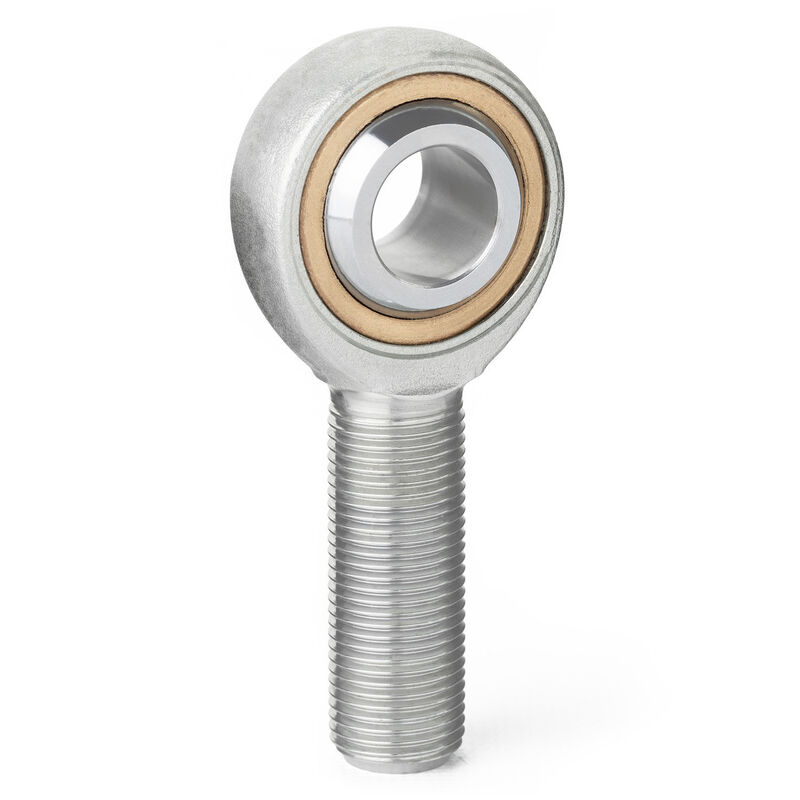

MV Series 3 Piece Bronze Race Rod End, 10mm Bore, M10X1.5 LH Male Thread (PART #QA1-MVML10)

QA1's

MVM Series

carbon steel metric male rod ends with bronze race are generally appropriate for low load, high oscillation applications. These commercial rod ends are protective coated for corrosion resistance and are available with right- or left-hand threads. Flush mount grease fitting is included. Stud configurations are available.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

RACE:

Sintered Bronze, Oil impregnated

BODY:

Carbon Steel, Protective Coated for Corrosion Resistance

SPECIFICATIONS

Rod End Series MV Series
Style/Construction 3 Piece Bronze Race
Bore 10mm
Thread Direction LH
Thread Size and Pitch M10X1.5
Male or Female Thread Male
PTFE Lined? No
Configuration Standard
