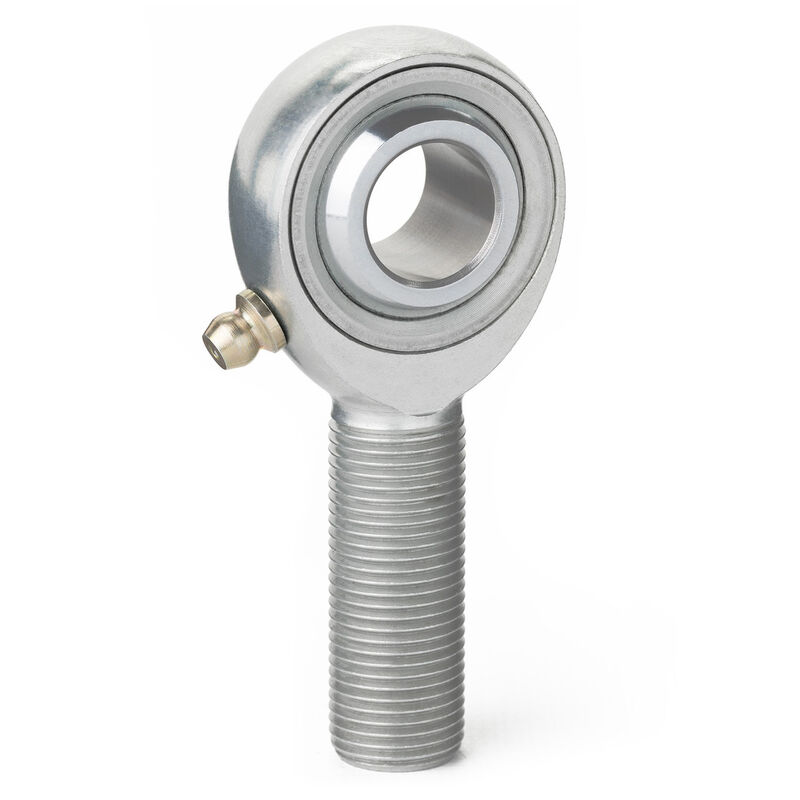

MH Series 3 Piece Alloy Rod End, 8mm Bore, M8X1.25 RH Male Thread (PART #QA1-MHMR8Z)

QA1's

MHM Series

alloy/chromoly metric male rod ends are precision constructed in a traditional three-piece design. MHM Series precision rod ends have a higher ball-to-race conformity, which creates tighter tolerances. This makes them ideal for precision applications where tight tolerances are critical. These rod ends are heat treated, are available in right- or left-hand threads. Includes a grease fitting which, when lubricated regularly, can extend the life of the rod end, reduce wear, and enhance performance. Stud configurations are also available.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

RACE:

Alloy/Chromoly Steel

BODY:

Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance

SPECIFICATIONS

Rod End Series MH Series
Style/Construction 3 Piece Alloy
Bore 8mm
Thread Direction RH
Thread Size and Pitch M8X1.25
Male or Female Thread Male
PTFE Lined? No
Configuration Greaseable
