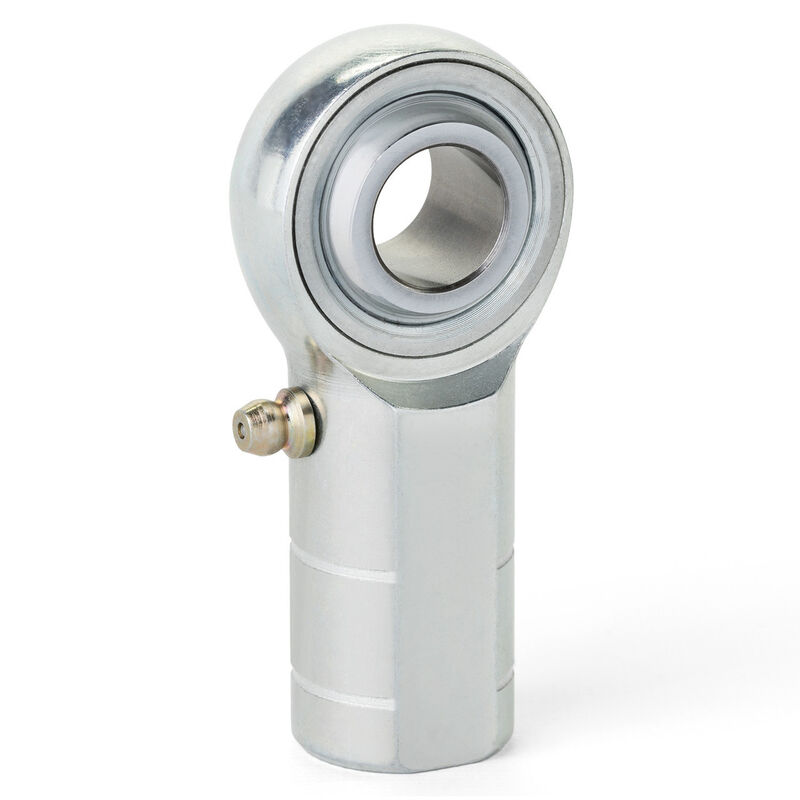

H Series 3 Piece Alloy Rod End, 20mm Bore, M20x2.5 LH Female Thread (PART #QA1-MHFL20Z-1)

QA1's

MHF Series

alloy/chromoly metric female rod ends are precision constructed in a traditional three-piece design. MHF Series precision rod ends have a higher ball-to-race conformity, which creates tighter tolerances. This makes them ideal for precision applications where tight tolerances are critical. These rod ends are heat treated, are available in right- or left-hand threads. Includes a grease fitting which, when lubricated regularly, can extend the life of the rod end, reduce wear, and enhance performance. Stud configurations are also available.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

RACE:

Alloy/Chromoly Steel

BODY:

Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance

SPECIFICATIONS

Rod End Series MH Series
Style/Construction 3 Piece Alloy
Bore 20mm
Thread Direction LH
Thread Size and Pitch M20X2.5
Male or Female Thread Female
PTFE Lined? No
Configuration Greaseable
