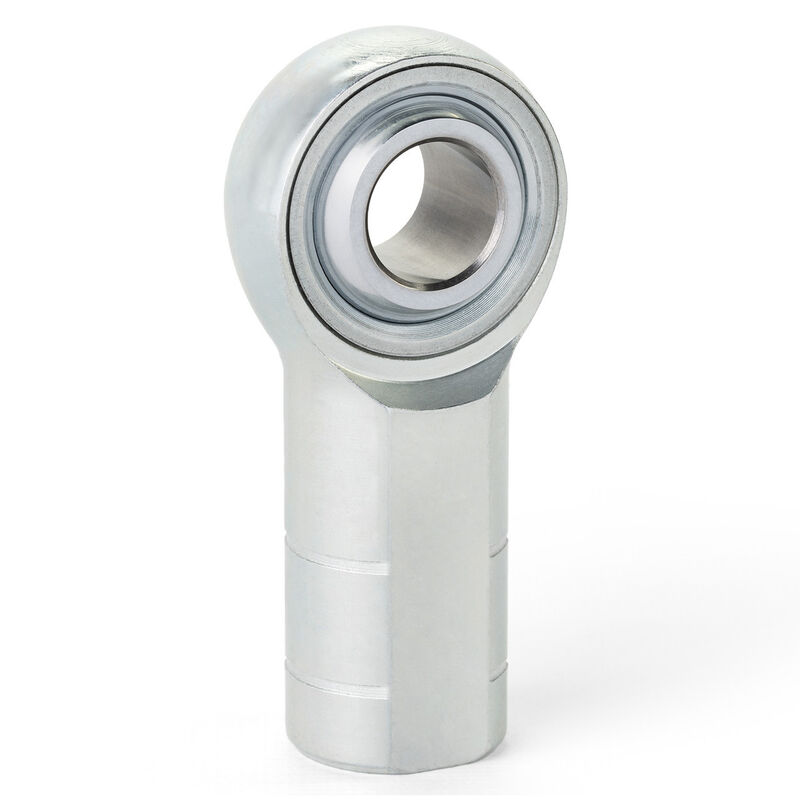

MH Series 3 Piece Alloy Rod End, 12mm Bore, M12X1.75 LH Female Thread, PTFE Lined (PART #QA1-MHFL12T)

QA1's

MHF-T

Series alloy/chromoly steel metric male rod ends are a traditional three-piece design and include a self-lubricating PTFE liner. These precision rod ends are ideal for a variety of applications and are available in right- or left-hand threads. Stud configurations are available.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

RACE:

Stainless Steel, Heat Treated

LINER:

Self-Lubricating PTFE

BODY:

Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance.

SPECIFICATIONS

Rod End Series MH Series
Style/Construction 3 Piece Alloy
Bore 12mm
Thread Direction LH
Thread Size and Pitch M12X1.75
Male or Female Thread Female
PTFE Lined? Yes
Configuration Standard
