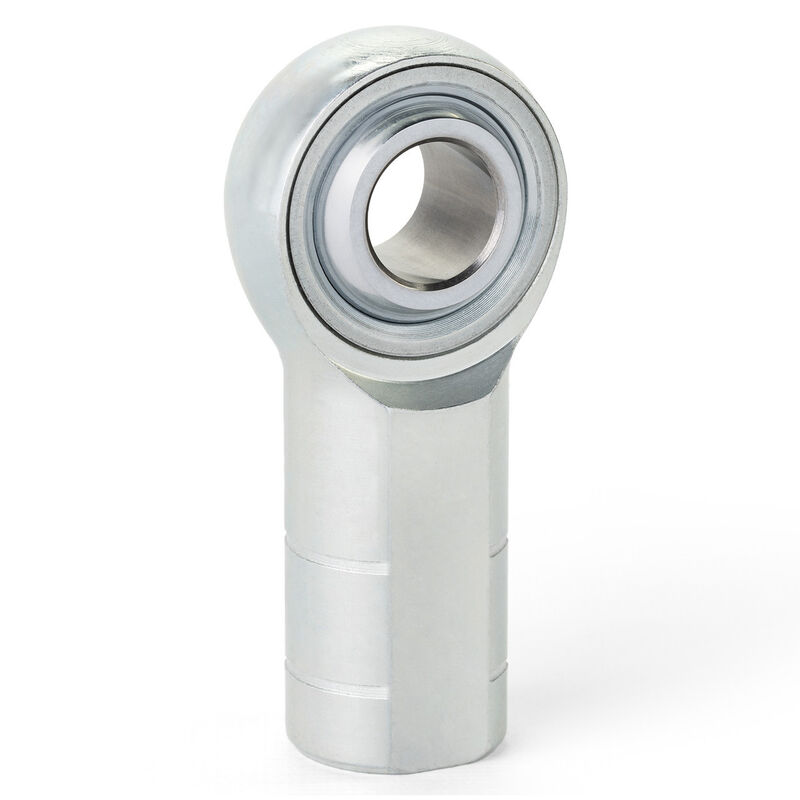

MH Series 3 Piece Alloy Rod End, 12mm Bore, M12X1.75 LH Female Thread (PART #QA1-MHFL12)

QA1's

MHF Series

alloy/chromoly metric female rod ends are precision constructed in a traditional three-piece design. MHF Series precision rod ends have a higher ball-to-race conformity, which creates tighter tolerances. This makes them ideal for precision applications where tight tolerances are critical. These rod ends are heat treated, are available in right- or left-hand threads. Grease fittings and stud configurations are available.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

RACE:

Alloy/Chromoly Steel

BODY:

Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance

SPECIFICATIONS

Rod End Series MH Series
Style/Construction 3 Piece Alloy
Bore 12mm
Thread Direction LH
Thread Size and Pitch M12X1.75
Male or Female Thread Female
PTFE Lined? No
Configuration Standard
