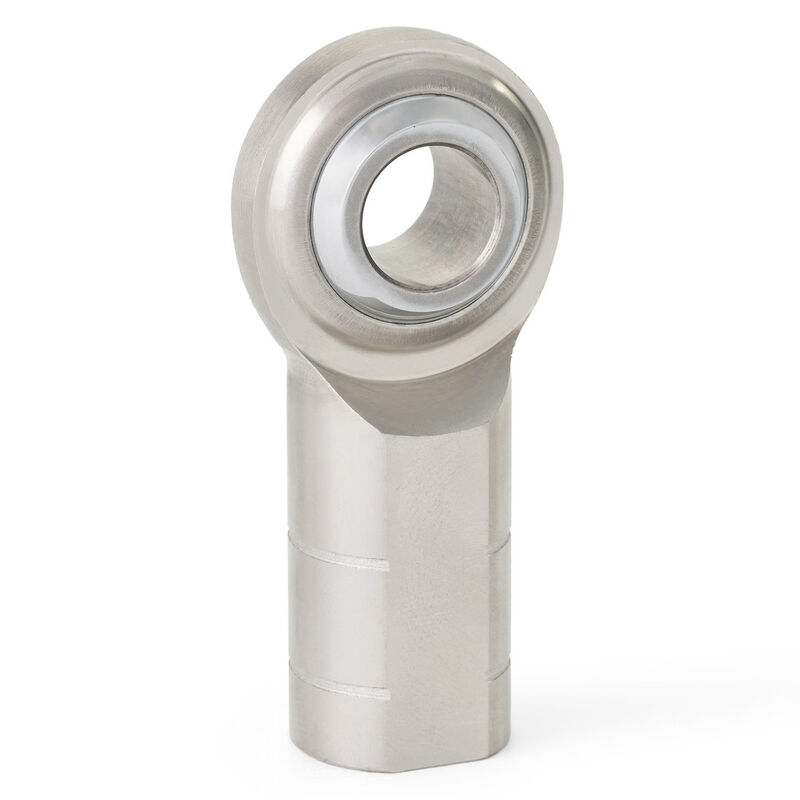

MG Series 2 Piece Stainless Rod End, 12mm Bore, M12X1.75 LH Female Thread, PTFE Lined (PART #QA1-MGFL12T)

QA1's

MGF-T Series

stainless steel metric female rod ends constructed using a traditional two-piece design, making them ideal for a range of commercial applications. They also feature a self-lubricating PTFE liner and a 300 series stainless steel body and are ideal for use in corrosive environments. These metric rod ends are available with right- or left-hand threads. Stud configurations are also available.

BALL:

440C Stainless Steel, Heat Treated, Precision Ground

LINER:

Self-Lubricating PTFE

BODY:

300 Series Stainless Steel

SPECIFICATIONS

Rod End Series MG Series
Style/Construction 2 Piece Stainless
Bore 12mm
Thread Direction LH
Thread Size and Pitch M12X1.75
Male or Female Thread Female
PTFE Lined? Yes
Configuration Standard
