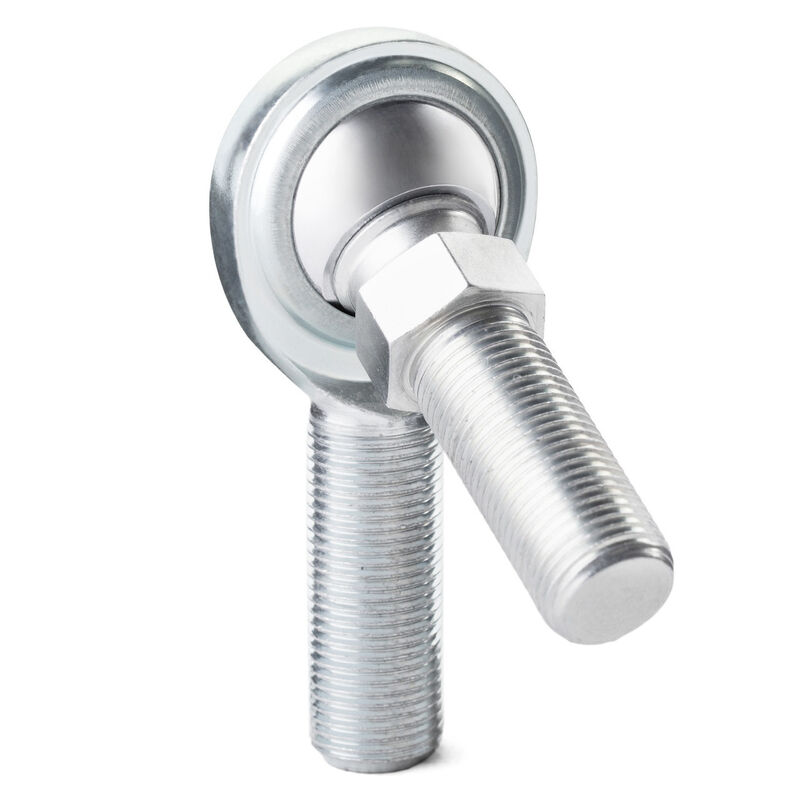

MC Series 2 Piece Carbon Rod End, 14mm Bore, M14X2.0 RH Male Thread (PART #QA1-MCMR14S)

QA1's

MCM Series

carbon steel metric male rod ends employ a traditional two-piece construction. These commercial metal-to-metal rod ends are protective coated for corrosion resistance and are available with right- or left-hand threads. MCM series is an economical, commercial grade rod end that is generally appropriate for moderate applications. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications. Grease fittings are also available for most sizes (except sizes 5 and 6).

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

BODY:

Carbon Steel, Protective Coated for Corrosion Resistance

STUD:

Carbon Steel

NOTE:

Load ratings apply only to rod ends without grease fittings. For ratings with grease fittings, please contact QA1.

SPECIFICATIONS

Rod End Series MC Series
Style/Construction 2 Piece Carbon
Bore 14mm
Thread Direction RH
Thread Size and Pitch M14X2.0
Male or Female Thread Male
PTFE Lined? No
Configuration Studded
