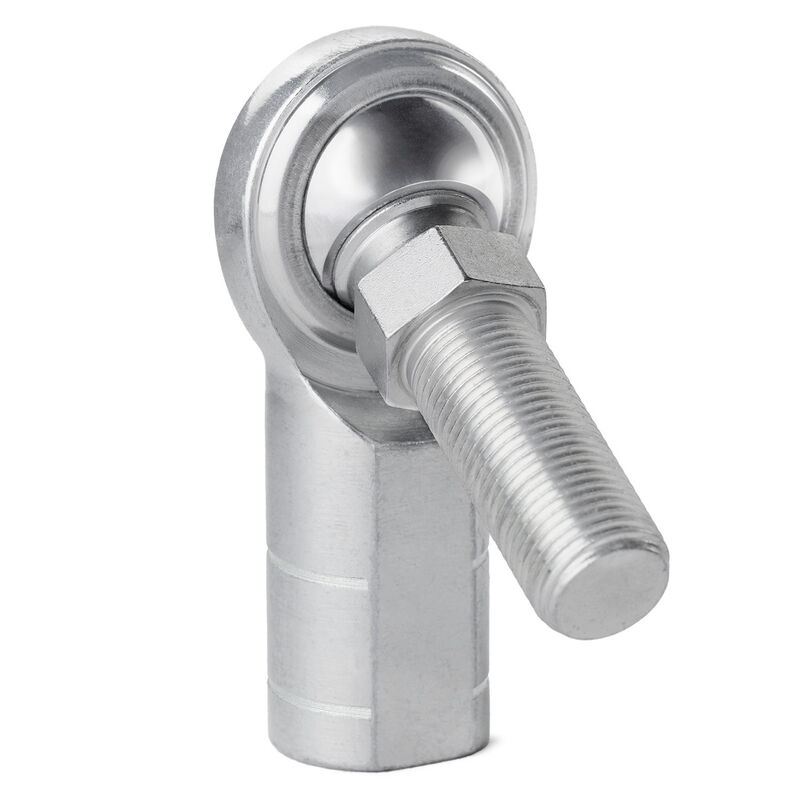

MC Series 2 Piece Carbon Rod End, 8mm Bore, M8X1.25 LH Female Thread (PART #QA1-MCFL8S)

QA1's

MCF Series

carbon steel metric female rod ends employ a traditional two-piece construction. These commercial metal-to-metal rod ends are protective coated for corrosion resistance and are available with right- or left-hand threads. MCM series is an economical, commercial grade rod end that is generally appropriate for moderate applications. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications. Grease fittings are also available.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

BODY:

Carbon Steel, Protective Coated for Corrosion Resistance

STUD:

Carbon Steel

SPECIFICATIONS

Rod End Series MC Series
Style/Construction 2 Piece Carbon
Bore 8mm
Thread Direction LH
Thread Size and Pitch M8X1.25
Male or Female Thread Female
PTFE Lined? No
Configuration Studded
