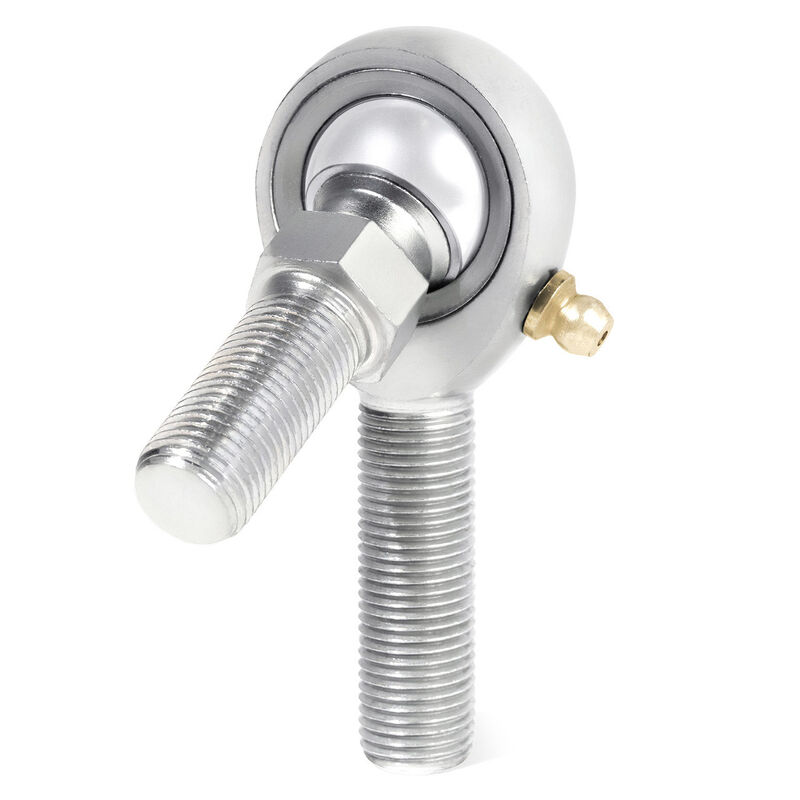

K Series 3 Piece Carbon Rod End, 3/16in. Bore, 11963 RH Male Thread (PART #QA1-KMR3SZ)

QA1's

KM Series

carbon steel male rod ends are constructed using a traditional three-piece design. KM Series precision rod ends have a higher ball-to-race conformity, which creates tighter tolerances. This makes them ideal for precision applications where tight tolerances critical. These precision rod ends are designed for high-load applications and are available in right- or left-hand threads. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications. Also includes a grease fitting which, when lubricated regularly, can extend the life of the rod end, reduce wear, and enhance performance. K Series rod ends are also available in large bore sizes.

BALL:

52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground

RACE:

Alloy Steel, Heat Treated

BODY:

Carbon Steel (Alloy Steel - Mfr.'s Option), Protective Coated for Corrosion Resistance

STUD:

Carbon Steel

SPECIFICATIONS

Rod End Series K Series
Style/Construction 3 Piece Carbon
Bore 0.1875in. or 3/16in.
Thread Direction RH
Thread Size and Pitch 10-32
Male or Female Thread Male
PTFE Lined? No
Configuration Studded & Greaseable
