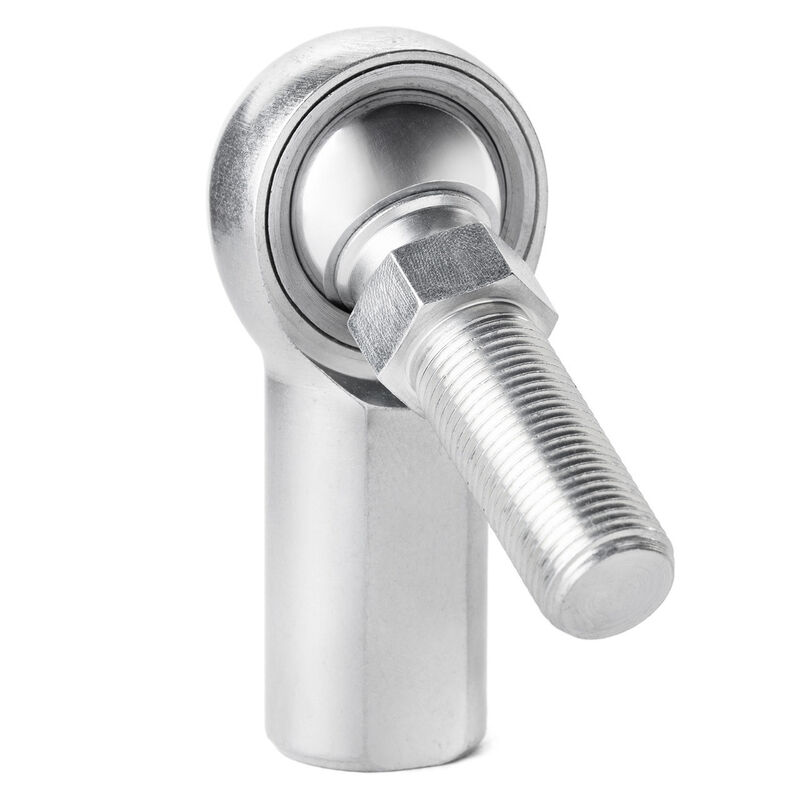

K Series 3 Piece Carbon Rod End, 3/4in. Bore, 7/8in.-14 RH Male Thread, PTFE Lined (PART #QA1-KMR12-14TS)

QA1's

KM-T Series

carbon steel male rod ends are constructed using a traditional three-piece design and include a self-lubricating PTFE liner. These precision rod ends are designed for high-load applications and are available in right- or left-hand threads. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

RACE:

Stainless Steel

LINER:

Self-Lubricating PTFE

BODY:

Carbon Steel (Alloy/Chromoly Steel - Mfr.'s Option), Protective Coated for Corrosion Resistance

STUD:

Carbon Steel

SPECIFICATIONS

Rod End Series K Series
Style/Construction 3 Piece Carbon
Bore 0.7500in. or 3/4in.
Thread Direction RH
Thread Size and Pitch 7/8in.-14
Male or Female Thread Male
PTFE Lined? Yes
Configuration Studded
