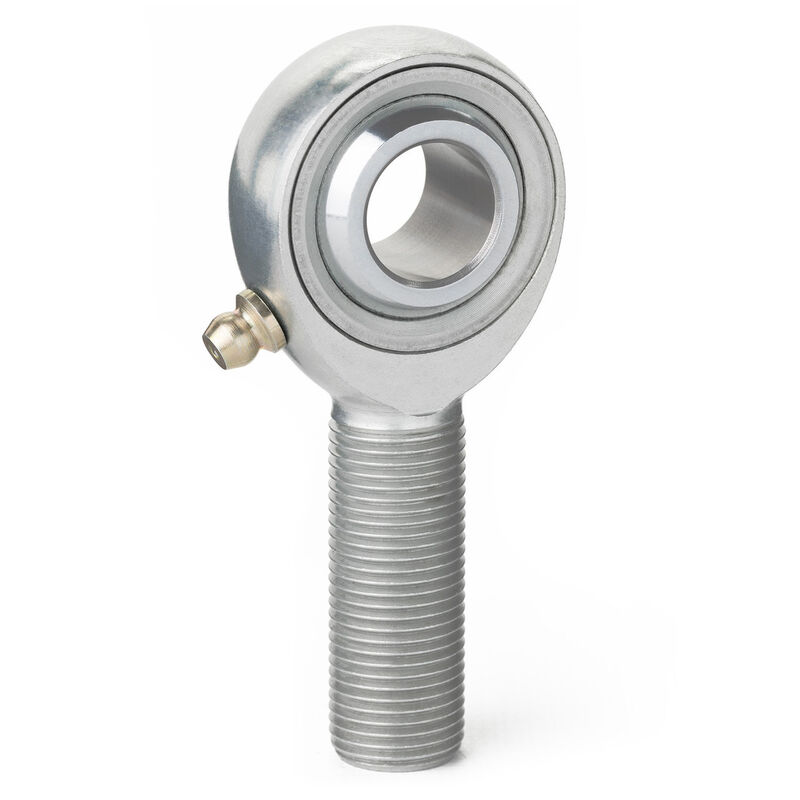

K Series 3 Piece Carbon Rod End, 7/16in. Bore, 1/2in.-20 LH Male Thread (PART #QA1-KML7-8Z)

QA1's

KM Series

large bore alloy steel male rod ends are constructed using a three-piece design using hardened bearing steel ball/race. The ball and race are MOS2 (Molybdenum Disulfide) coated to reduce friction and wear. These precision rod ends are designed for heavy-duty/high-load applications and are available in right- or left-hand threads. All KM Series large bore rod ends include a grease fitting as standard.

BALL:

52100 Bearing Steel, Heat Treated, MOS2 Coated

RACE:

52100 Bearing Steel, Heat Treated, MOS2 Coated, Sealed

BODY:

Alloy Steel, Protective Coated for Corrosion Resistance, Grease Fitting Installed as Standardd

SPECIFICATIONS

Rod End Series K Series
Style/Construction 3 Piece Carbon
Bore 0.4375in. or 7/16in.
Thread Direction LH
Thread Size and Pitch 1/2in.-20
Male or Female Thread Male
PTFE Lined? No
Configuration Greaseable
