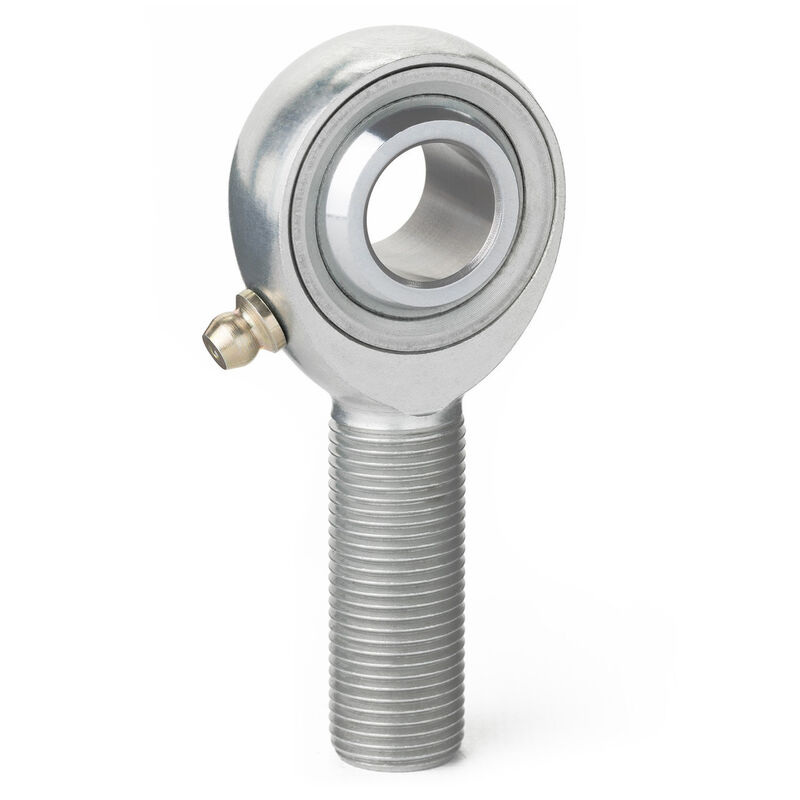

K Series 3 Piece Carbon Rod End, 3/8in. Bore, 3/8in.-24 LH Male Thread (PART #QA1-KML6Z)

QA1's

KM Series

large bore alloy steel male rod ends are constructed using a three-piece design using hardened bearing steel ball/race. The ball and race are MOS2 (Molybdenum Disulfide) coated to reduce friction and wear. These precision rod ends are designed for heavy-duty/high-load applications and are available in right- or left-hand threads. All KM Series large bore rod ends include a grease fitting as standard.

BALL:

52100 Bearing Steel, Heat Treated, MOS2 Coated

RACE:

52100 Bearing Steel, Heat Treated, MOS2 Coated, Sealed

BODY:

Alloy Steel, Protective Coated for Corrosion Resistance, Grease Fitting Installed as Standardd

SPECIFICATIONS

Rod End Series K Series
Style/Construction 3 Piece Carbon
Bore 0.3750in. or 3/8in.
Thread Direction LH
Thread Size and Pitch 3/8in.-24
Male or Female Thread Male
PTFE Lined? No
Configuration Greaseable
