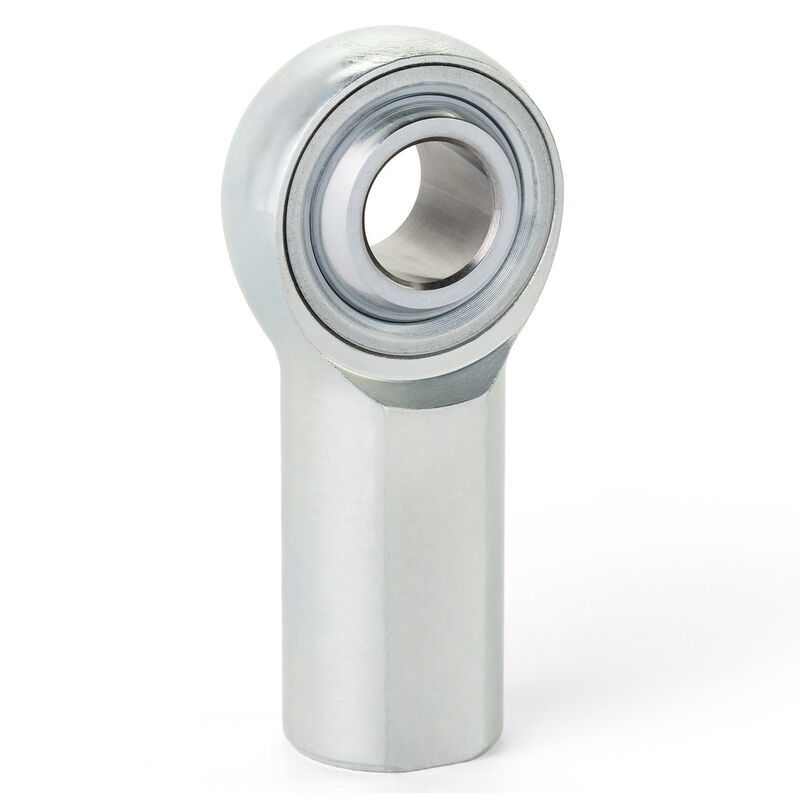

K Series 3 Piece Carbon Rod End, 1/4in. Bore, 1/4in.-28 RH Female Thread, PTFE Lined (PART #QA1-KFR4T)

QA1's

KF-T Series

carbon steel female rod ends are constructed using a traditional three-piece design and include a self-lubricating PTFE liner. These precision rod ends are designed for high-load applications and are available in right- or left-hand threads. Stud configurations are available.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

RACE:

Stainless Steel

LINER:

Self-Lubricating PTFE

BODY:

Carbon Steel (Alloy Steel - Mfr.'s Option), Protective Coated for Corrosion Resistance

SPECIFICATIONS

Rod End Series K Series
Style/Construction 3 Piece Carbon
Bore 0.2500in. or 1/4in.
Thread Direction RH
Thread Size and Pitch 1/4in.-28
Male or Female Thread Female
PTFE Lined? Yes
Configuration Standard
