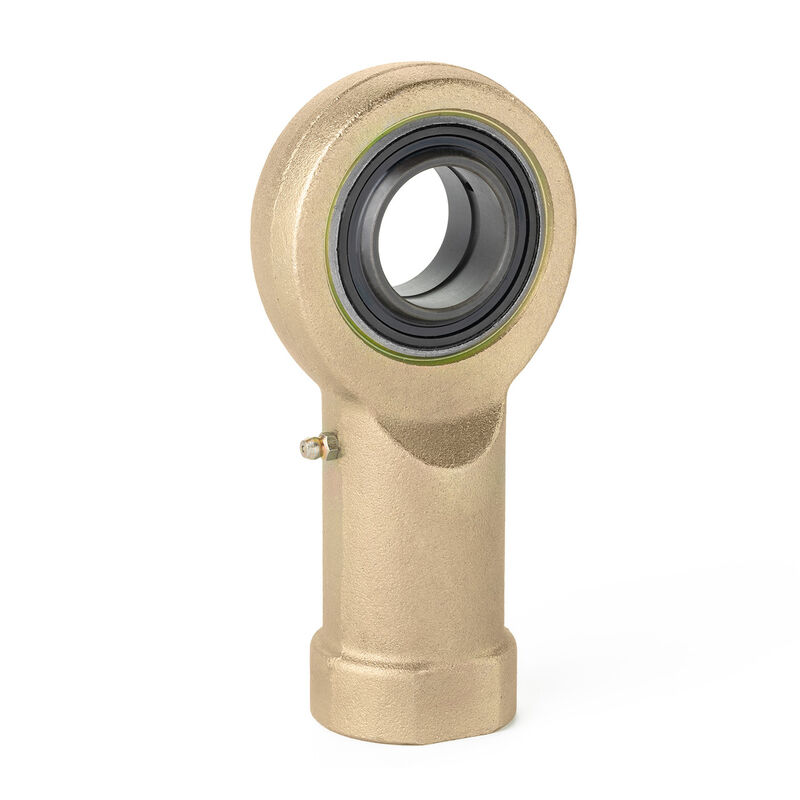

K Series 3 Piece Carbon Rod End, 1-1/4in. Bore, 1-1/4in.-12 RH FemaleThread (PART #QA1-KFR20Z)

QA1's

KF Series

large bore alloy steel female rod ends are constructed using a three-piece design using hardened bearing steel ball/race. The ball and race are MoS2 (Molybdenum Disulfide) coated to reduce friction and wear. These precision rod ends are designed for heavy-duty/high-load applications and are available in right- or left-hand threads. All KF Series large bore rod ends include a grease fitting as standard.

BALL:

52100 Bearing Steel, Heat Treated, MoS2 Coated

RACE:

52100 Bearing Steel, Heat Treated, MoS2 Coated, Sealed

BODY:

Alloy Steel, Protective Coated for Corrosion Resistance, Grease Fitting Installed as Standard

SPECIFICATIONS

Rod End Series K Series
Style/Construction 3 Piece Carbon
Bore 1.2500in. or 1-1/4in.
Thread Direction RH
Thread Size and Pitch 1-1/4in-12
Male or Female Thread Female
PTFE Lined? No
Configuration Greaseable
