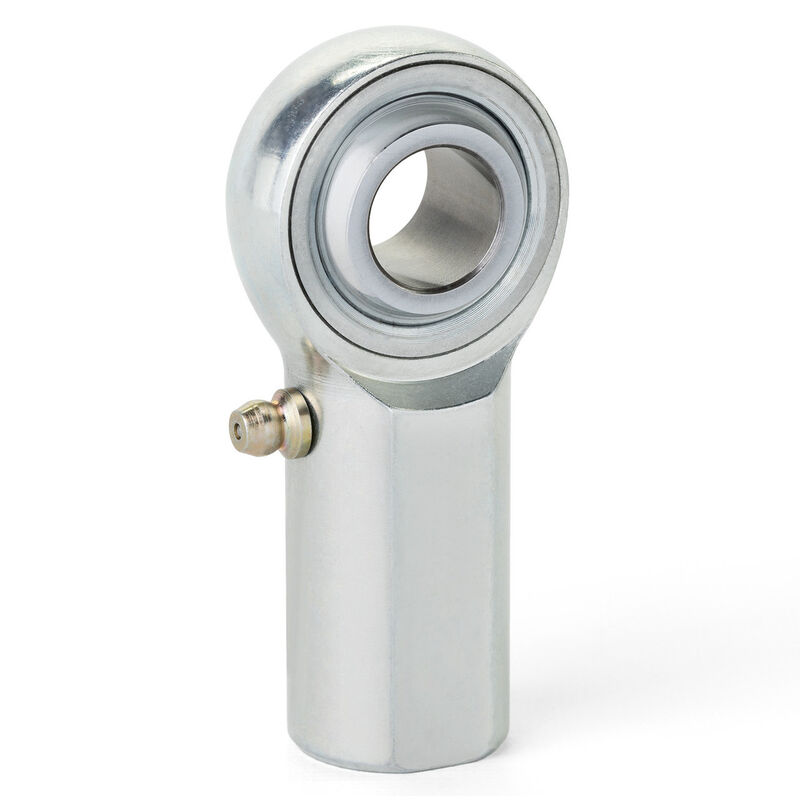

K Series 3 Piece Carbon Rod End, 7/8in. Bore, 7/8in.-14 RH Female Thread (PART #QA1-KFR14Z)

QA1's

KF Series

large bore alloy steel female rod ends are constructed using a three-piece design using hardened bearing steel ball/race. The ball and race are MoS2 (Molybdenum Disulfide) coated to reduce friction and wear. These precision rod ends are designed for heavy-duty/high-load applications and are available in right- or left-hand threads. All KF Series large bore rod ends include a grease fitting as standard.

BALL:

52100 Bearing Steel, Heat Treated, MoS2 Coated

RACE:

52100 Bearing Steel, Heat Treated, MoS2 Coated, Sealed

BODY:

Alloy Steel, Protective Coated for Corrosion Resistance, Grease Fitting Installed as Standard

SPECIFICATIONS

Rod End Series K Series
Style/Construction 3 Piece Carbon
Bore 0.8750in. or 7/8in.
Thread Direction RH
Thread Size and Pitch 7/8in.-14
Male or Female Thread Female
PTFE Lined? No
Configuration Greaseable
