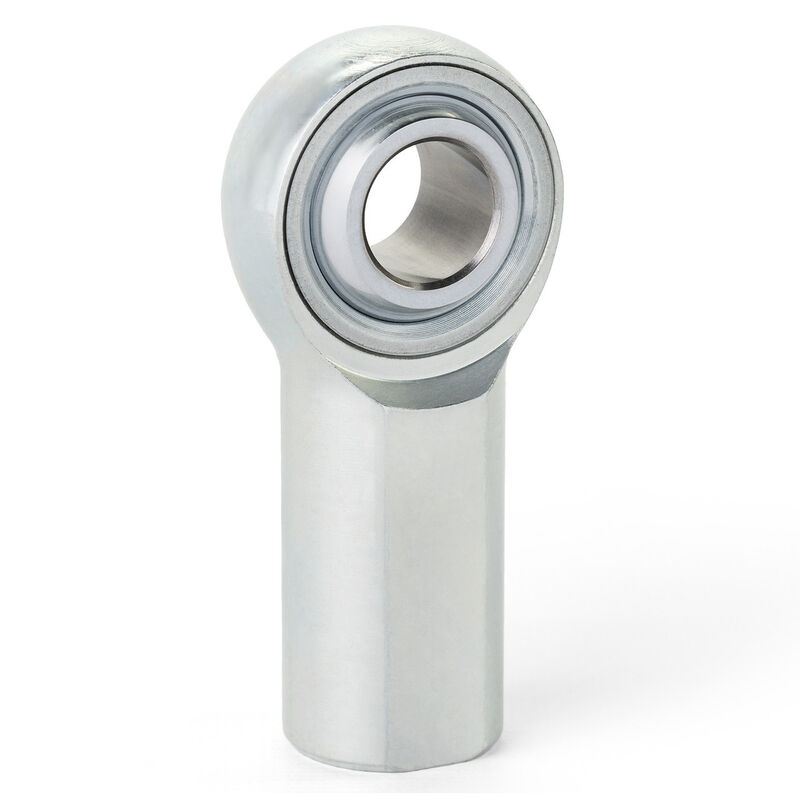

K Series 3 Piece Carbon Rod End, 7/8in. Bore, 7/8in.-14 RH Female Thread (PART #QA1-KFR14)

QA1's

KF Series

carbon steel female rod ends are constructed using a traditional three-piece design. KF Series precision rod ends have a higher ball-to-race conformity, which creates tighter tolerances. This makes them ideal for precision applications where tight tolerances are critical. These precision rod ends are designed for high-load applications and are available in right- or left-hand threads. Grease fittings and stud configurations are available. Also available in large bore sizes.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

RACE:

Alloy/Chromoly Steel, Heat Treated

BODY:

Carbon Steel (Alloy Steel - Mfr.'s Option), Protective Coated for Corrosion Resistance

SPECIFICATIONS

Rod End Series K Series
Style/Construction 3 Piece Carbon
Bore 0.8750in. or 7/8in.
Thread Direction RH
Thread Size and Pitch 7/8in.-14
Male or Female Thread Female
PTFE Lined? No
Configuration Standard
