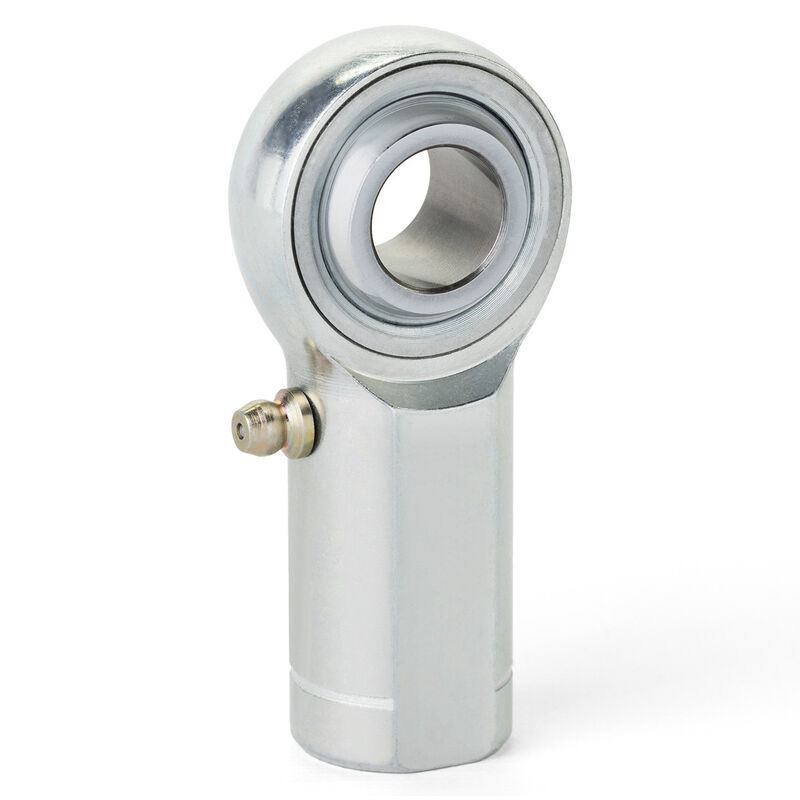

K Series 3 Piece Carbon Rod End, 1in. Bore, 1-1/4in.-12 LH Female Thread (PART #QA1-KFL16Z)

QA1's

KF Series

carbon steel female rode ends are constructed using a traditional three-piece design. KF Series precision rod ends have a higher ball-to-race conformity, which creates tighter tolerances. This makes them ideal for precision applications where tight tolerances critical. These precision rod ends are designed for high-load applications and are available in right- or left-hand threads. Includes a grease fitting which, when lubricated regularly, can extend the life of the rod end, reduce wear, and enhance performance. Stud configurations are also available. K Series rod ends are also available in large bore sizes.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

RACE:

Alloy/Chromoly Steel, Heat Treated

BODY:

Carbon Steel (Alloy Steel - Mfr.'s Option), Protective Coated for Corrosion Resistance

SPECIFICATIONS

Rod End Series K Series
Style/Construction 3 Piece Carbon
Bore 1.0000in. or 1in.
Thread Direction LH
Thread Size and Pitch 1-1/4in.-12
Male or Female Thread Female
PTFE Lined? No
Configuration Greaseable
