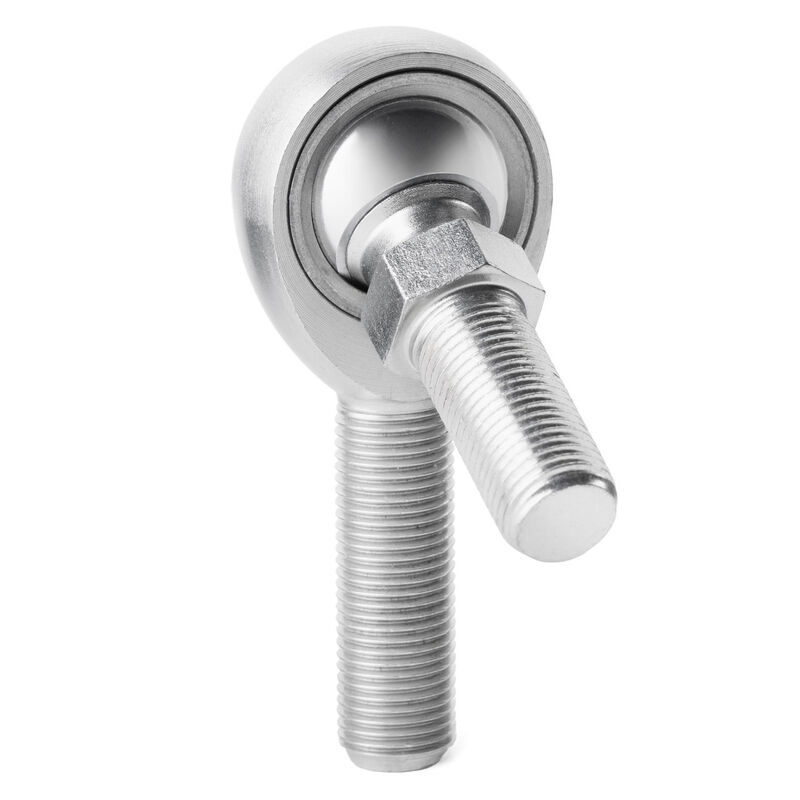

H Series 3 Piece Alloy Rod End, 3/8in. Bore, 3/8in.-24 RH Male Thread, PTFE Lined (PART #QA1-HMR6TS)

QA1's

HM-T Series

alloy/chromoly male rod ends are constructed using a traditional three-piece design and include a self-lubricating PTFE liner. These precision rod ends are heat treated and are available in right- or left-hand threads. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications.

BALL:

52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground

RACE:

Stainless Steel

LINER:

Self-Lubricating PTFE

BODY:

Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance

STUD:

Carbon Steel

SPECIFICATIONS

Rod End Series H Series
Style/Construction 3 Piece Alloy
Bore 0.3750in. or 3/8in.
Thread Direction RH
Thread Size and Pitch 3/8in.-24
Male or Female Thread Male
PTFE Lined? Yes
Configuration Studded
