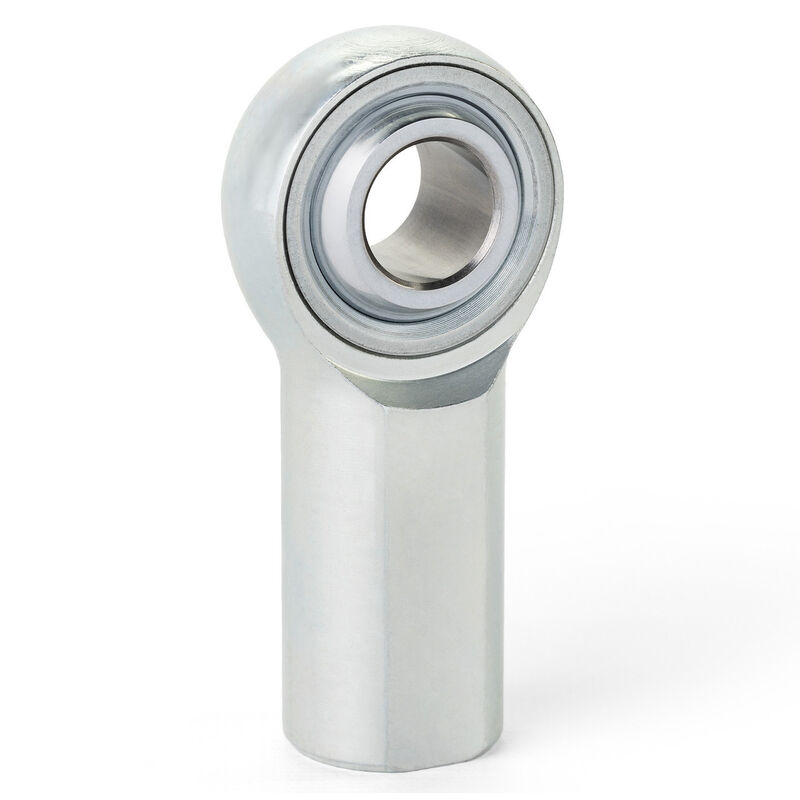

H Series 3 Piece Alloy Rod End, 5/8in. Bore, 5/8in.-18 RH Female Thread, PTFE Lined (PART #QA1-HFR10T)

QA1's

HF-T Series

alloy/chromoly female rod ends are constructed using a traditional three-piece design and include a self-lubricating PTFE liner. These precision rod ends are heat treated and are available in right- or left-hand threads. Stud configurations are also available.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

RACE:

Stainless Steel

LINER:

Self-Lubricating PTFE

BODY:

Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance

SPECIFICATIONS

Rod End Series H Series
Style/Construction 3 Piece Alloy
Bore 0.6250in. or 5/8in.
Thread Direction RH
Thread Size and Pitch 5/8in.-18
Male or Female Thread Female
PTFE Lined? Yes
Configuration Standard
