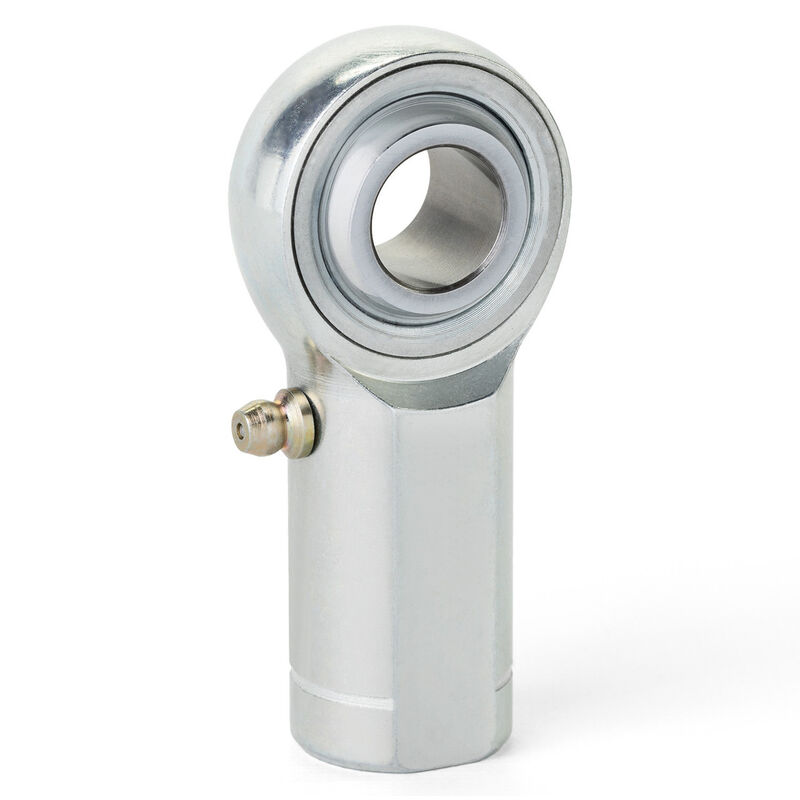

H Series 3 Piece Alloy Rod End, 1/4in. Bore, 1/4in.-28 LH Female Thread (PART #QA1-HFL4Z)

QA1's

HF Series

alloy/chromoly female rod ends are constructed using a traditional three-piece design. HF Series precision rod ends have a higher ball-to-race conformity, which creates tighter tolerances. This makes them ideal for precision applications where tight tolerances are critical. These rod ends are heat treated and are available in right- or left-hand threads. Includes a grease fitting which, when lubricated regularly, can extend the life of the rod end, reduce wear, and enhance performance. Stud configurations are also available.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

RACE:

Alloy/Chromoly Steel

BODY:

Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance

SPECIFICATIONS

Rod End Series H Series
Style/Construction 3 Piece Alloy
Bore 0.2500in. or 1/4in.
Thread Direction LH
Thread Size and Pitch 1/4in.-28
Male or Female Thread Female
PTFE Lined? No
Configuration Greaseable
