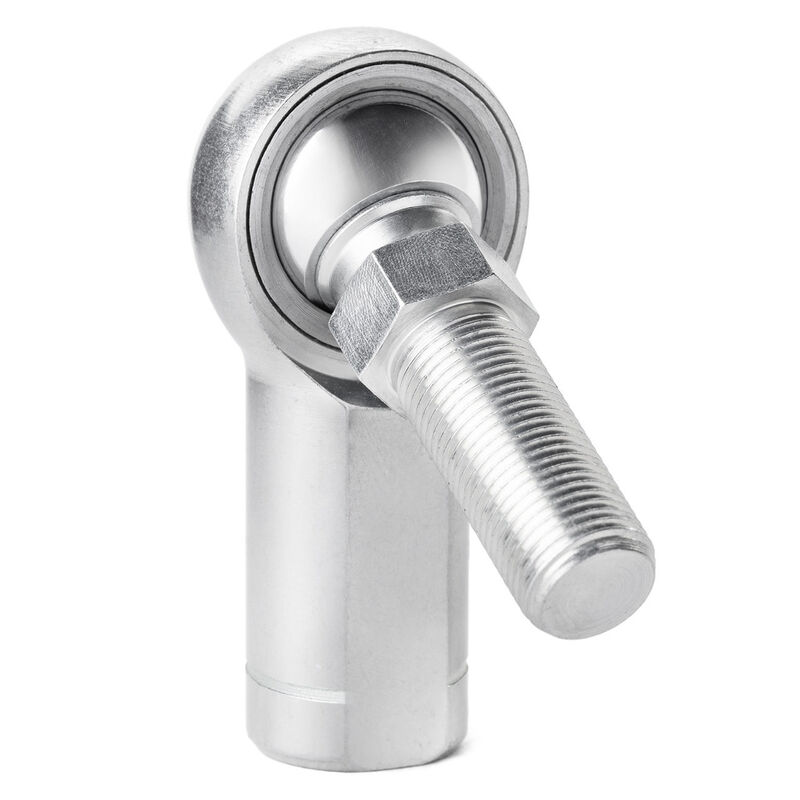

H Series 3 Piece Alloy Rod End, 1/4in. Bore, 1/4in.-28 LH Female Thread, PTFE Lined (PART #QA1-HFL4TS)

QA1's

HF-T Series

alloy/chromoly female rod ends are constructed using a traditional three-piece design and include a self-lubricating PTFE liner. These precision rod ends are heat treated and are available in right- or left-hand threads. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

RACE:

Stainless Steel

LINER:

Self-Lubricating PTFE

BODY:

Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance

STUD:

Carbon Steel

SPECIFICATIONS

Rod End Series H Series
Style/Construction 3 Piece Alloy
Bore 0.2500in. or 1/4in.
Thread Direction LH
Thread Size and Pitch 1/4in.-28
Male or Female Thread Female
PTFE Lined? Yes
Configuration Studded
