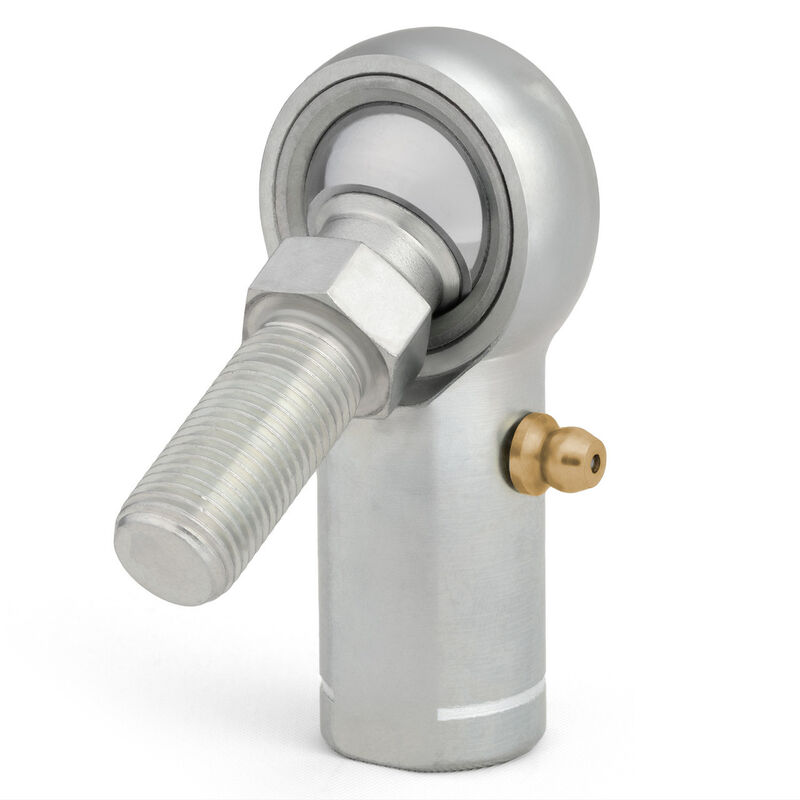

H Series 3 Piece Alloy Rod End, 3/16in. Bore, 11963 LH Female Thread (PART #QA1-HFL3SZ)

QA1's

HF Series

alloy/chromoly female rod ends are constructed using a traditional three-piece design. HF Series precision rod ends have a higher ball-to-race conformity, which creates tighter tolerances. This makes them ideal for precision applications where tight tolerances are critical. These rod ends are heat treated and are available in right- or left-hand threads. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications. Also includes a grease fitting which, when lubricated regularly, can extend the life of the rod end, reduce wear, and enhance performance.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

RACE:

Alloy/Chromoly Steel

BODY:

Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance

STUD:

Carbon Steel

SPECIFICATIONS

Rod End Series H Series
Style/Construction 3 Piece Alloy
Bore 0.1875in. or 3/16in.
Thread Direction LH
Thread Size and Pitch 10-32
Male or Female Thread Female
PTFE Lined? No
Configuration Studded & Greaseable
