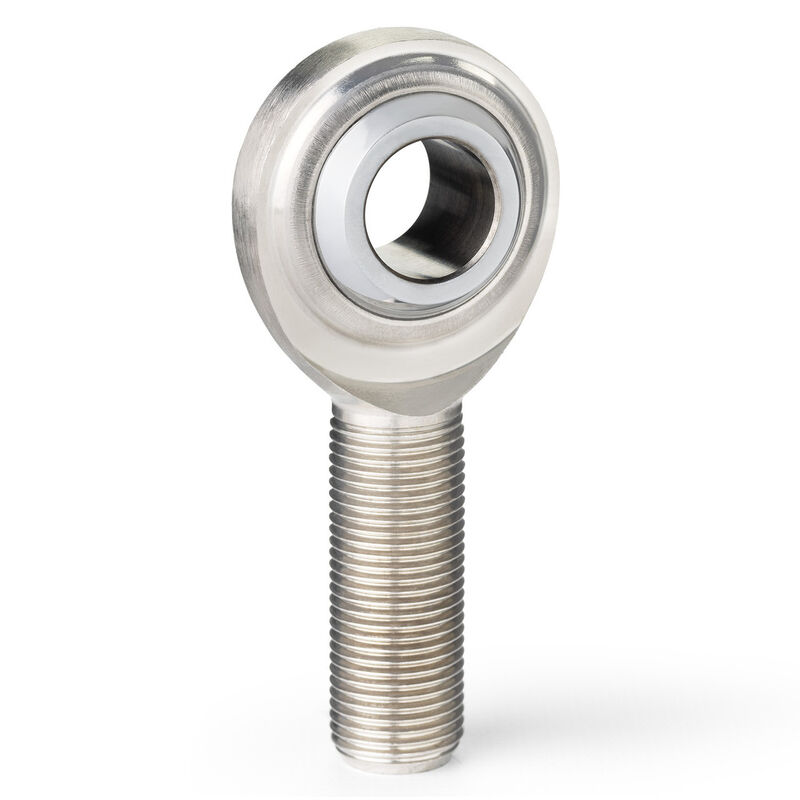

G Series 2 Piece Stainless Rod End, 7/16in. Bore, 7/16in.-20 RH Male Thread, PTFE Lined (PART #QA1-GMR7T)

QA1's

GM-T Series

stainless steel male rod ends are constructed using a traditional two-piece design which is ideal for use in a range of commercial applications. GM-T Series rod ends feature a 300 series stainless steel body and a self-lubricating PTFE liner, making them an excellent choice for use in corrosive environments. Available in both right- or left-hand threads. Stud configurations are also available.

BALL:

440C Stainless Steel, Heat Treated, Precision Ground, Hard Chrome Plated

LINER:

Self-Lubricating PTFE

BODY:

300 Series Stainless Steel

SPECIFICATIONS

Rod End Series G Series
Style/Construction 2 Piece Stainless
Bore 0.4375in. or 7/16in.
Thread Direction RH
Thread Size and Pitch 7/16in.-20
Male or Female Thread Male
PTFE Lined? Yes
Configuration Standard
