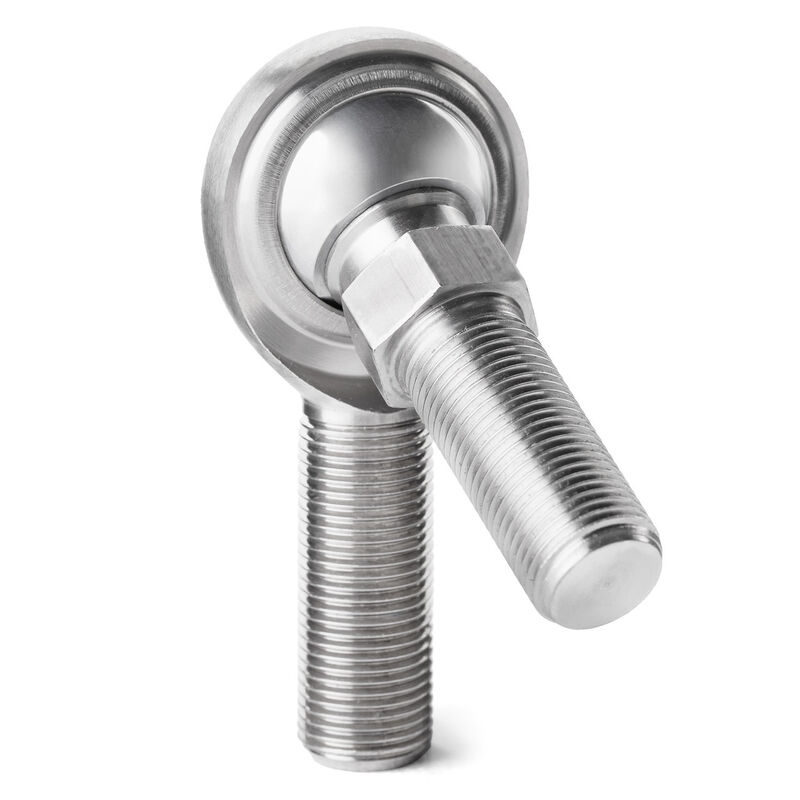

G Series 2 Piece Stainless Rod End, 3/4in. Bore, 3/4in.-16 LH Male Thread, PTFE Lined (PART #QA1-GML12TS)

QA1's

GM-T Series

stainless steel male rod ends are constructed using a traditional two-piece design which is ideal for use in a range of commercial applications. GM-T Series rod ends feature a 300 series stainless steel body and a self-lubricating PTFE liner, making them an excellent choice for use in corrosive environments. Available in both right- or left-hand threads. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications.

BALL:

440C Stainless Steel, Heat Treated, Precision Ground, Hard Chrome Plated

LINER:

Self-Lubricating PTFE

BODY:

300 Series Stainless Steel

STUD

: Stainless Steel

SPECIFICATIONS

Rod End Series G Series
Style/Construction 2 Piece Stainless
Bore 0.7500in. or 3/4in.
Thread Direction LH
Thread Size and Pitch 3/4in.-16
Male or Female Thread Male
PTFE Lined? Yes
Configuration Studded
