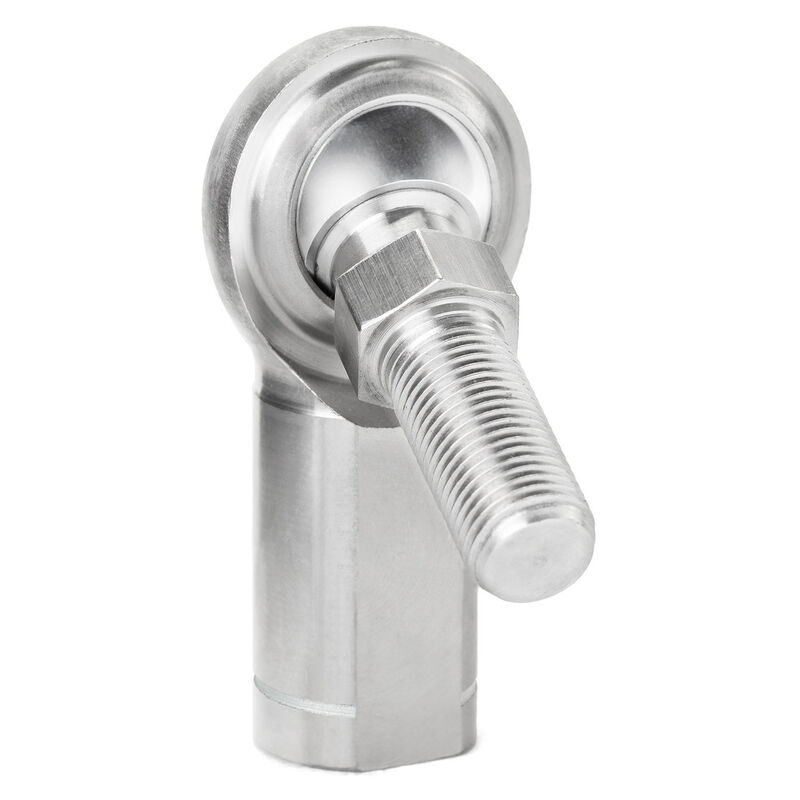

G Series 2 Piece Stainless Rod End, 5/16in. Bore, 5/16in.-24 LH Female Thread, PTFE Lined (PART #QA1-GFL5TS)

QA1's

GF-T Series

stainless steel female rod ends are constructed using a traditional two-piece design which is ideal for use in a range of commercial applications. GFT Series rod ends feature a 300 series stainless steel body and a self-lubricating PTFE liner, making them an excellent choice for use in corrosive environments. Available in both right- or left-hand threads. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications.

BALL:

440C Stainless Steel, Heat Treated, Precision Ground, Hard Chrome Plated

LINER:

Self-Lubricating PTFE

BODY:

300 Series Stainless Steel

STUD:

Stainless Steel

SPECIFICATIONS

Rod End Series G Series
Style/Construction 2 Piece Stainless
Bore 0.3125in. or 5/16in.
Thread Direction LH
Thread Size and Pitch 5/16in.-24
Male or Female Thread Female
PTFE Lined? Yes
Configuration Studded
