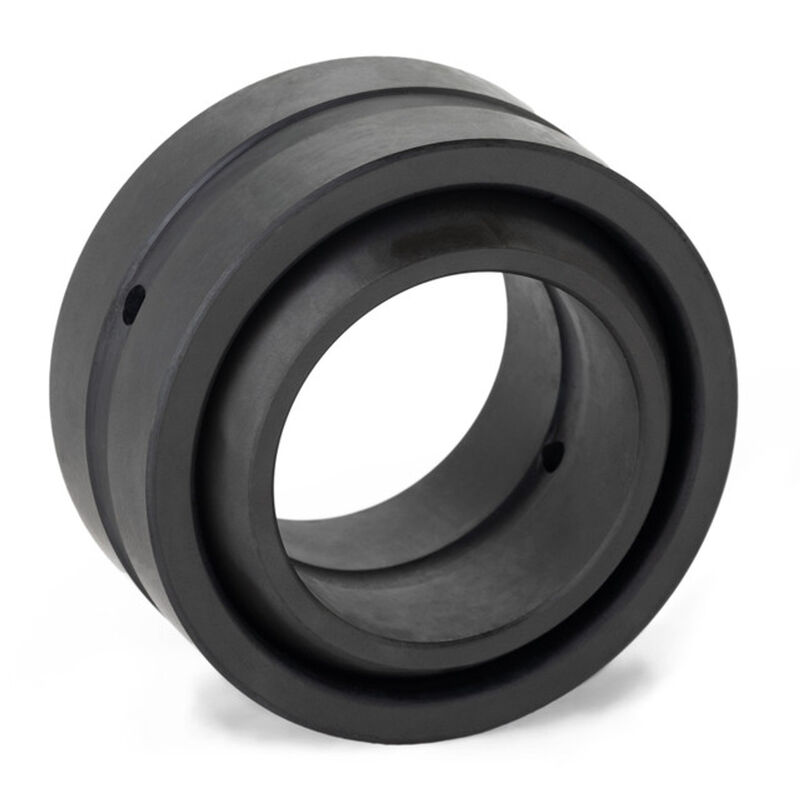

GEZ Series Spherical Bearing, 52100 Steel, 1in. Bore (PART #QA1-GEZ25ES)

QA1's

GEZ Series

fractured race spherical bearings are manufactured using 52100 bearing steel, making them a commercial grade bearing that's ideally suited for high wear and increased load applications found in many industrial markets. Because of the strength of the steel, the race cannot be molded around the ball and therefore is fractured slightly to allow the ball to be inserted. The hardened and ground surfaces allow for full ball to race conformity, resulting in reduced wear, smooth operation, and less localized stress.

BALL:

52100 Bearing Steel, Protective Coated for Corrosion Resistance

RACE:

52100 Bearing Steel, Protective Coated for Corrosion Resistance

SPECIFICATIONS

Construction/Style Fractured Race
PTFE Lined? No
Bore Diameter 1in.
