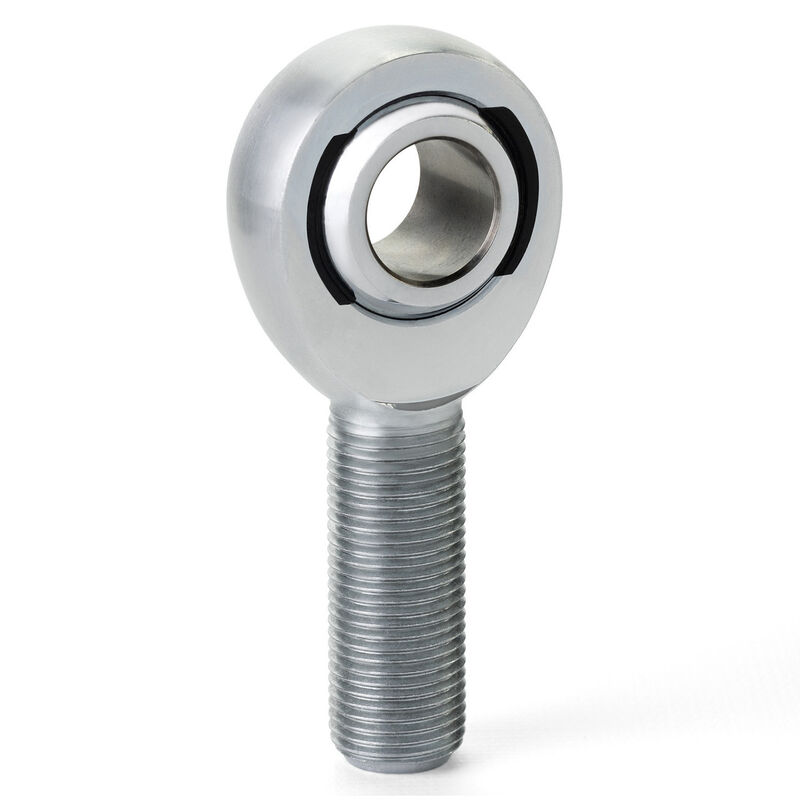

EX Series Carbon Loader Slot Rod End, 1/4in. Bore, 1/4in.-28 LH Male Thread, PTFE Lined (PART #QA1-EXML4)

QA1's

EXM Series

high-strength carbon steel rod ends include a unique loader slot design and have increased cross-sectional thickness. As an economical alternative to alloy/chromoly, QA1 is the exclusive provider of carbon steel loader slot rod ends. The reinforced Nylon injection molded race with self-lubricating PTFE won't pound out like other styles and helps keep dirt and debris out for excellent performance. This design results in metal-to-metal support for heavy shock loads and smooth operation for low loads, making it an excellent solution for a broad range of applications. When even more strength is needed, consider QA1 X Series rod ends. Available with right- or left-hand threads. Stud configurations are also available.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

RACE:

Self-Lubricating Reinforced Nylon 12 with PTFE

BODY:

Carbon Steel (Alloy/Chromoly Steel - Mfr.'s Option), Protective Coated for Corrosion Resistance

FEATURES

: Metal-to-Metal Support for Heavy Shock Loads, Increased Cross-Sectional Thickness for Greater Tensile Strength

SPECIFICATIONS

Rod End Series EX Series
Style/Construction Carbon Loader Slot
Bore 0.2500in. or 1/4in.
Thread Direction LH
Thread Size and Pitch 1/4in.-28
Male or Female Thread Male
PTFE Lined? Yes
Configuration Standard
