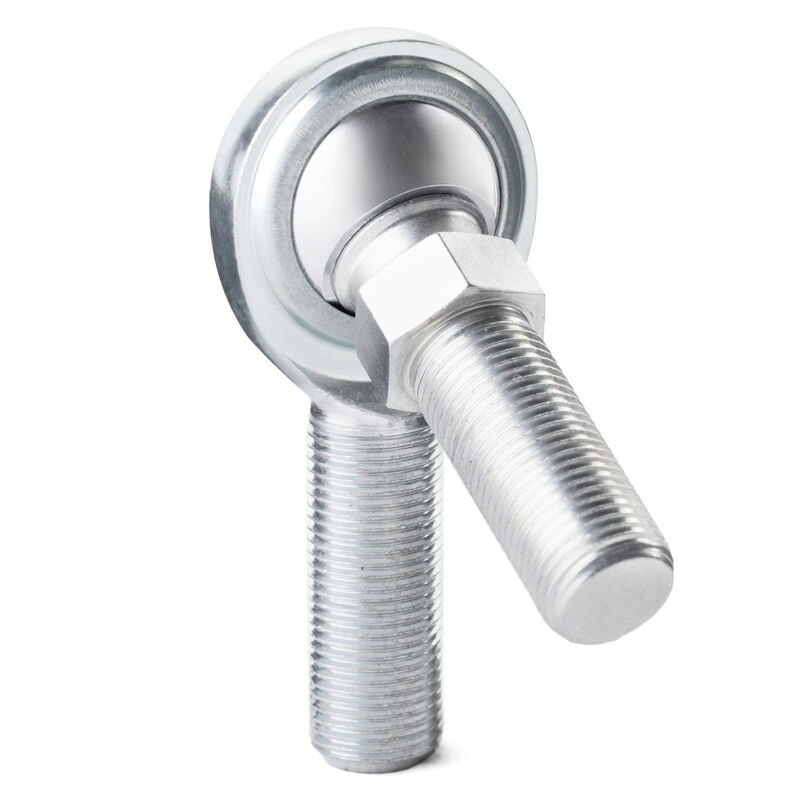

C Series 2 Piece Carbon Rod End, 1/4in. Bore, 5/16in.-24 RH Male Thread, PTFE Lined (PART #QA1-CMR4-5TS)

QA1's

CM-T Series

carbon steel male rod ends with self-lubricating PTFE liner are ideal for a range of commercial applications and are constructed using a traditional two-piece design. These rod ends are also protective-coated for corrosion resistance and are available with right- or left-hand threads. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

LINER:

Self-Lubricating PTFE

BODY:

Carbon Steel, Protective Coated for Corrosion Resistance

STUD:

Carbon Steel

SPECIFICATIONS

Rod End Series C Series
Style/Construction 2 Piece Carbon
Bore 0.2500in. or 1/4in.
Thread Direction RH
Thread Size and Pitch 5/16in.-24
Male or Female Thread Male
PTFE Lined? Yes
Configuration Studded
