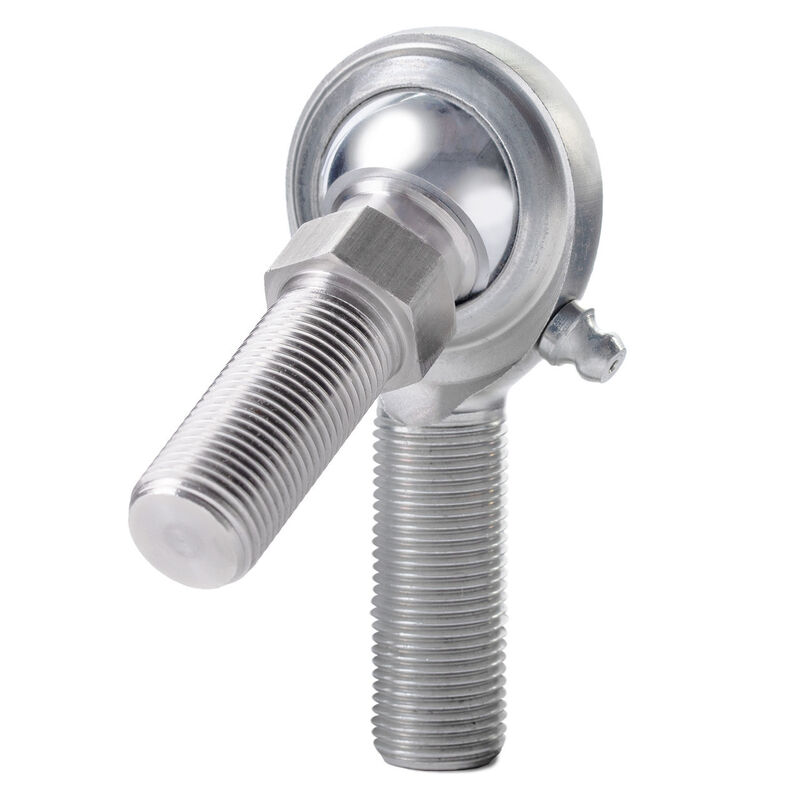

C Series 2 Piece Carbon Rod End, 3/4in. Bore, 3/4in.-16 RH Male Thread (PART #QA1-CMR12SZ)

QA1's

CM Series

carbon steel male rod ends are ideal for a range of commercial applications and are constructed using a traditional two-piece design. These rod ends are protective-coated for corrosion resistance and are available with right- or left-hand threads. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications. Also includes a grease fitting which, when lubricated regularly, can extend the life of the rod end, reduce wear, and enhance performance.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

BODY:

Carbon Steel, Protective Coated for Corrosion Resistance

STUD:

Carbon Steel

SPECIFICATIONS

Rod End Series C Series
Style/Construction 2 Piece Carbon
Bore 0.7500in. or 3/4in.
Thread Direction RH
Thread Size and Pitch 3/4in.-16
Male or Female Thread Male
PTFE Lined? No
Configuration Studded & Greaseable
