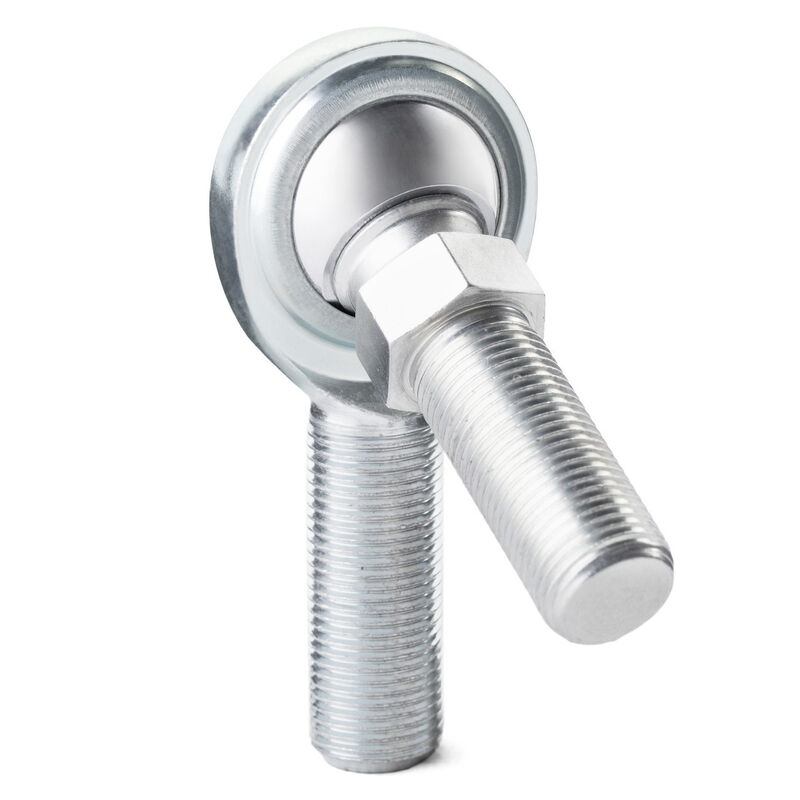

C Series 2 Piece Carbon Rod End, 5/16in. Bore, 5/16in.-24 LH Male Thread (PART #QA1-CML5S)

QA1's

CM Series

carbon steel male rod ends are ideal for a range of commercial applications and are constructed using a traditional two-piece design. These rod ends are protective-coated for corrosion resistance and are available with right- or left-hand threads. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications. Grease fittings are also available.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

BODY:

Carbon Steel, Protective Coated for Corrosion Resistance

STUD:

Carbon Steel

SPECIFICATIONS

Rod End Series C Series
Style/Construction 2 Piece Carbon
Bore 0.3125in. or 5/16in.
Thread Direction LH
Thread Size and Pitch 5/16in.-24
Male or Female Thread Male
PTFE Lined? No
Configuration Studded
