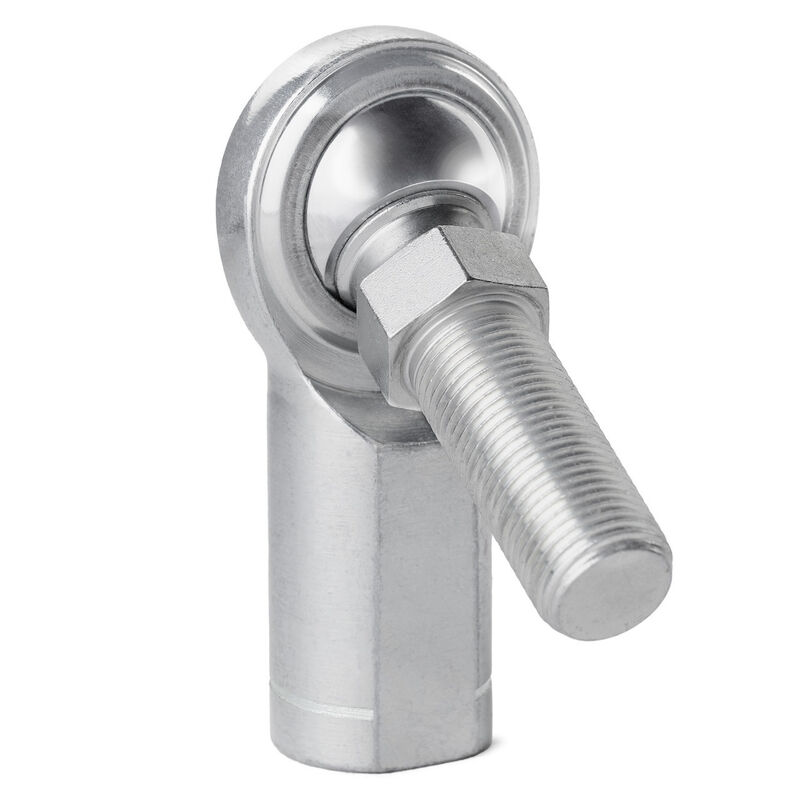

C Series 2 Piece Carbon Rod End, 7/16in. Bore, 7/16in.-20 LH Female Thread, PTFE Lined (PART #QA1-CFL7TS)

QA1's

CF-T Series

carbon steel female rod ends with self-lubricating PTFE liner are ideal for a range of commercial applications and are constructed using a traditional two-piece design. These rod ends are protective-coated for corrosion resistance and are available with right- or left-hand threads. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

LINER:

Self-Lubricating PTFE

BODY:

Carbon Steel, Protective Coated for Corrosion Resistance

STUD:

Carbon Steel

SPECIFICATIONS

Rod End Series C Series
Style/Construction 2 Piece Carbon
Bore 0.4375in. or 7/16in.
Thread Direction LH
Thread Size and Pitch 7/16in.-20
Male or Female Thread Female
PTFE Lined? Yes
Configuration Studded
