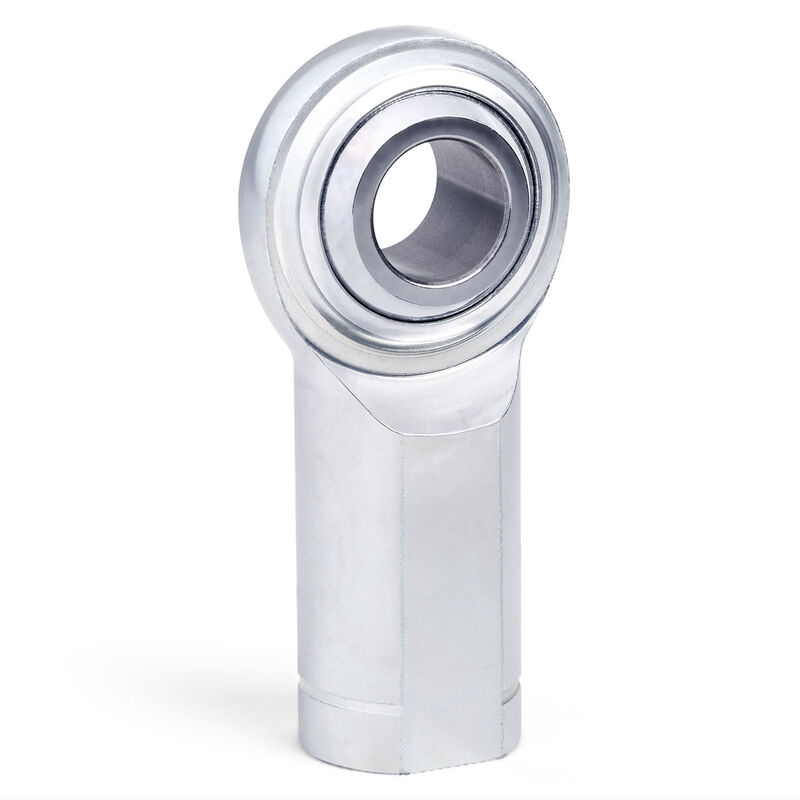

C Series 2 Piece Carbon Rod End, 7/16in. Bore, 7/16in.-20 LH Female Thread (PART #QA1-CFL7)

QA1's

CF Series

carbon steel female rod ends are ideal for a range of commercial applications and are constructed using a traditional two-piece design. These rod ends are protective-coated for corrosion resistance and are available with right- or left-hand threads. Grease fittings and stud configurations are also available.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

BODY:

Carbon Steel, Protective Coated for Corrosion Resistance

NOTE:

Load ratings apply only to rod ends without grease fittings. For ratings with grease fittings, please contact QA1.

SPECIFICATIONS

Rod End Series C Series
Style/Construction 2 Piece Carbon
Bore 0.4375in. or 7/16in.
Thread Direction LH
Thread Size and Pitch 7/16in.-20
Male or Female Thread Female
PTFE Lined? No
Configuration Standard
