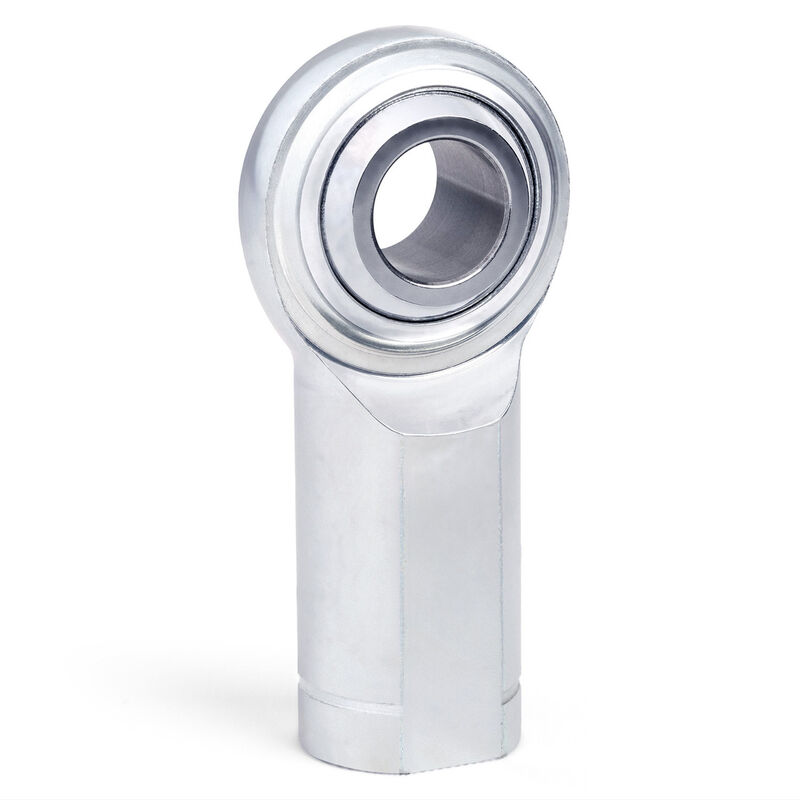

C Series 2 Piece Carbon Rod End, 3/4in. Bore, 3/4in.-16 LH Female Thread, PTFE Lined (PART #QA1-CFL12T)

QA1's

CF-T Series

carbon steel female rod ends with self-lubricating PTFE liner are ideal for a range of commercial applications and are constructed using a traditional two-piece design. These rod ends are protective-coated for corrosion resistance and are available with right- or left-hand threads. Stud configurations are also available.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

LINER:

Self-Lubricating PTFE

BODY:

Carbon Steel, Protective Coated for Corrosion Resistance

SPECIFICATIONS

Rod End Series C Series
Style/Construction 2 Piece Carbon
Bore 0.7500in. or 3/4in.
Thread Direction LH
Thread Size and Pitch 3/4in.-16
Male or Female Thread Female
PTFE Lined? Yes
Configuration Standard
