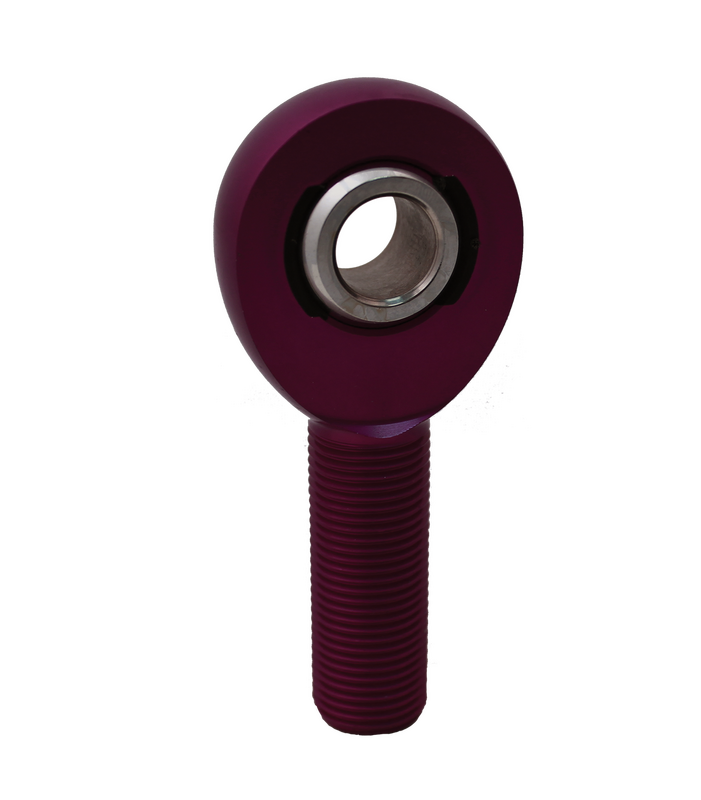

A Series Aluminum Loader Slot Rod End, 1/2in. Bore, 5/8in.-18 RH Male Thread, Purple, PTFE Lined (PART #QA1-AMR8-10PU)

AM Aluminum Series rod ends from QA1 are male rod ends that are designed specifically to save weight on performance applications. They feature a Nylon/PTFE injection molded race and are completely self-sealing and self-lubricating, keeping dirt and debris out. The AM Series rod ends are over 10% lighter than traditional three-piece aluminum rod ends and are the most wear-resistant aluminum design available. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , RACE, Nylon/PTFE, Self-Lubricating, Self-Sealing, , BODY, Aircraft Aluminum, Color Anodized Red as Standard, , EXCLUSIVE FEATURES, Metal to Metal Support for Heavy Shock Loads, Increased Cross-Sectional Thickness for Greater Tensile Strength.

SPECIFICATIONS

Rod End Series A Series
Style/Construction Aluminum Loader Slot
Bore 0.5000in. or 1/2in.
Thread Direction RH
Thread Size and Pitch 5/8in.-18
Male or Female Thread Male
PTFE Lined? Yes
Configuration Standard
